Project Description

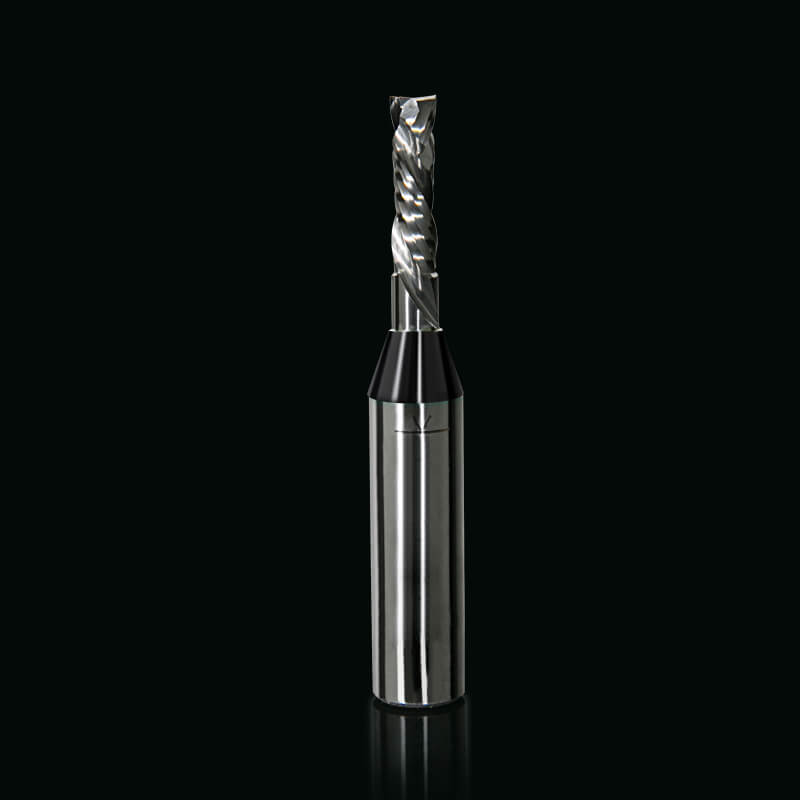

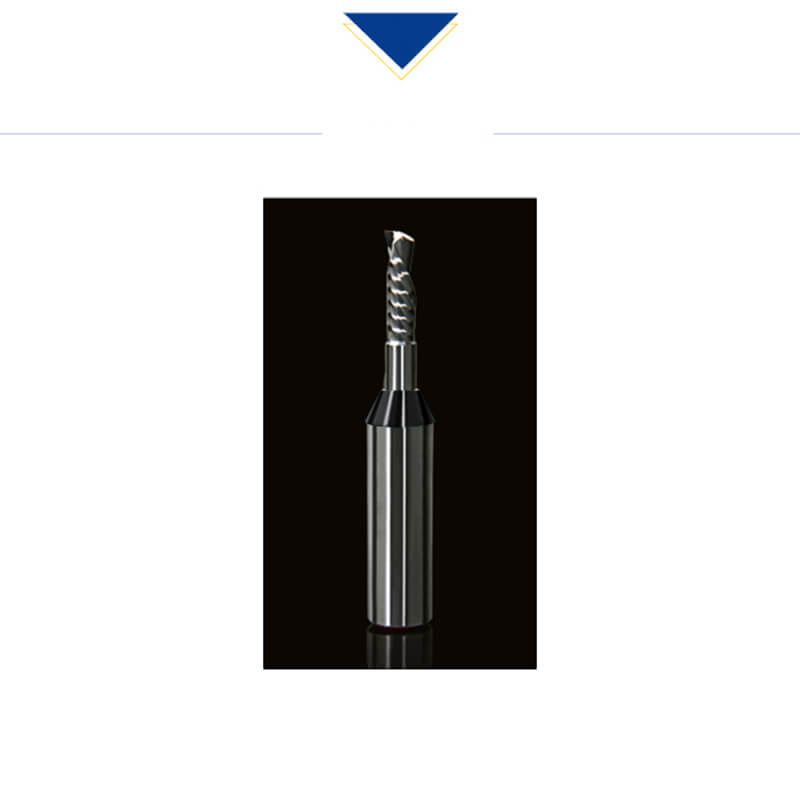

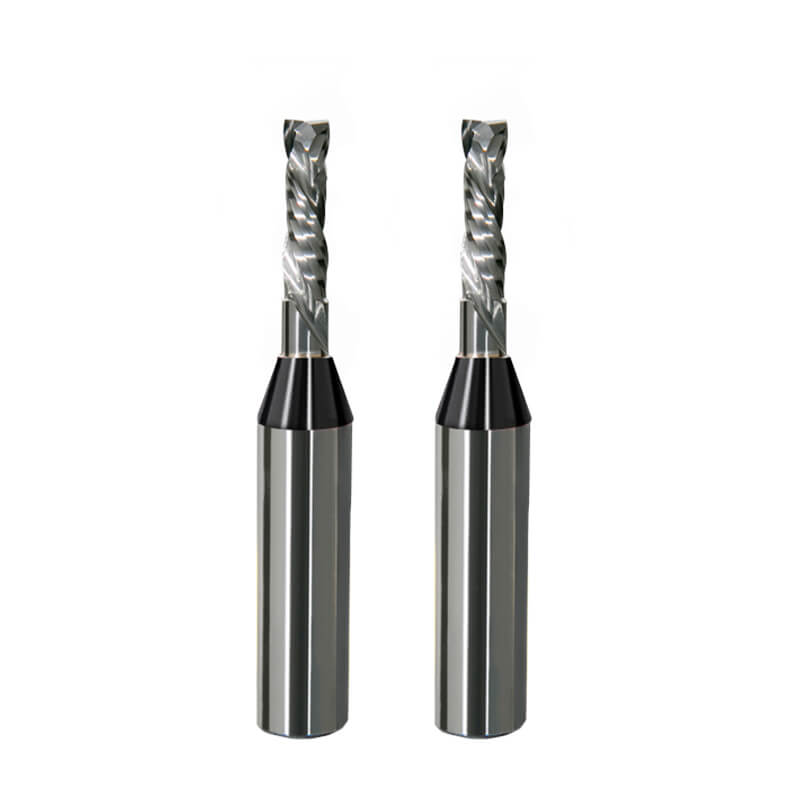

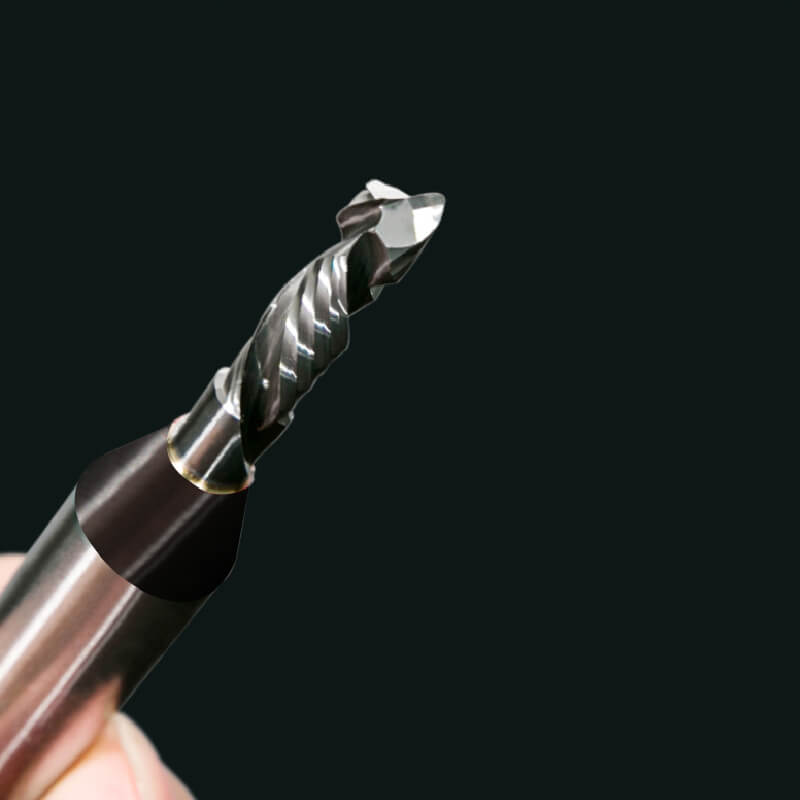

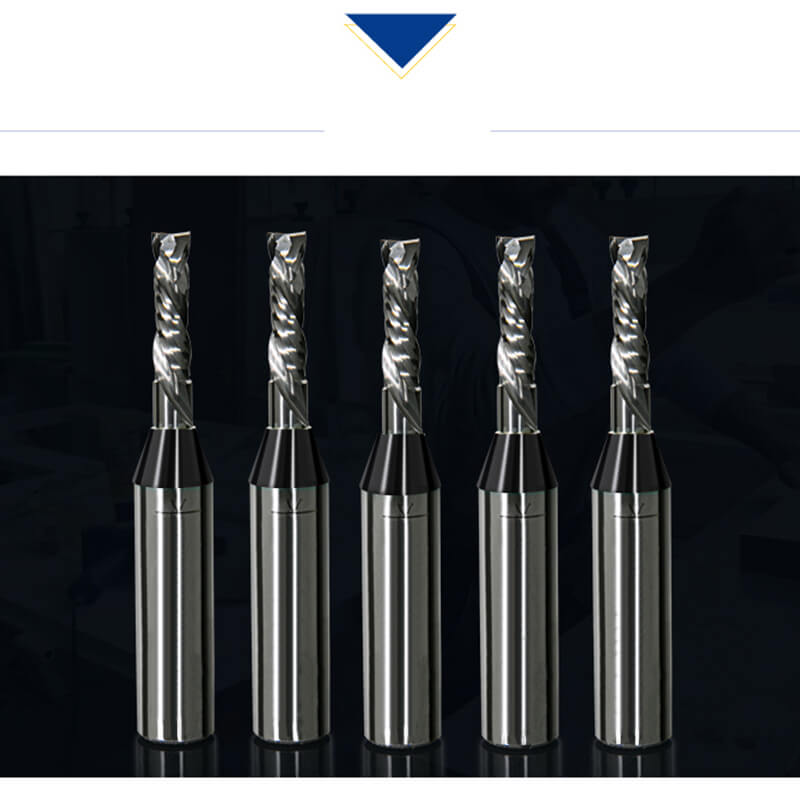

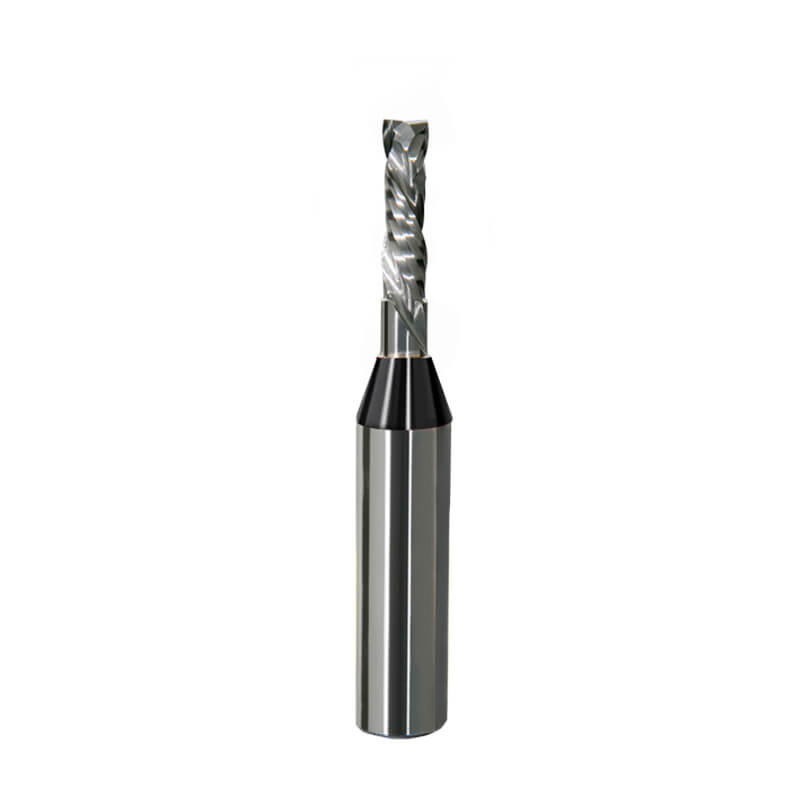

Two flutes TCT Compression end mill
Code:1088
Material: TCT
Coating: No Coating
Shank diameter: 12.7mm
Blade diameter： 4-8mm
End type: woodworking
Main features
*Dislocation chip breaking, strong chip removal, farewell to the difficult choice of cutting tool, double veneer plate special opening
* Teflon paint spraying process, high temperature resistance to reduce friction, tool life extension 18%
*Screw cutting, longer life, low consumption noise reduction, noise reduction
*Double veneer particleboard cutting nearly 1700m (8mm tool)
Application
*Apply to
Solid wood, hardwood, particleboard, density board and other materials
*Capable of
Trimming machine, engraving machine, cutting machine, hanging machine and other equipment
| CED | CEL | SHK | Order NO. |
|---|---|---|---|
| 6 | 20 | 12.7 | 10880620 |
| 6 | 22 | 12.7 | 10880622 |
| 6 | 24 | 12.7 | 10880624 |
| 6 | 26 | 12.7 | 10880626 |
| 6 | 28 | 12.7 | 10880628 |
| 8 | 20 | 12.7 | 10880820 |
| 8 | 22 | 12.7 | 10880822 |
| 8 | 24 | 12.7 | 10880824 |
| 8 | 26 | 12.7 | 10880826 |
| 8 | 28 | 12.7 | 10880828 |
| 8 | 30 | 12.7 | 10880830 |
| 4 | 10 | 12.7 | 10880410 |
| 4 | 15 | 12.7 | 10880415 |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
