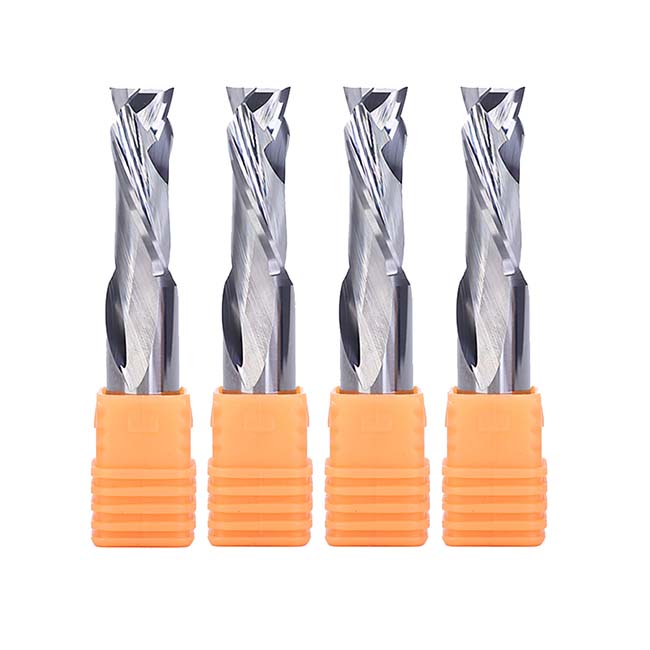

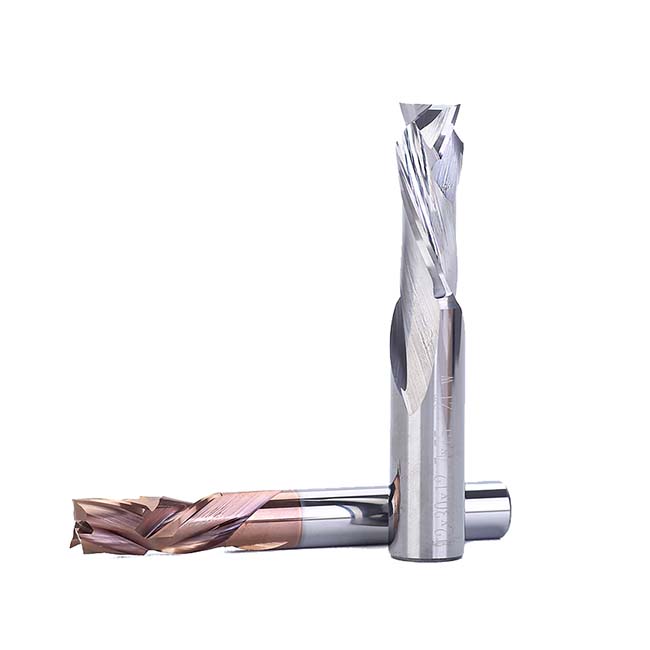

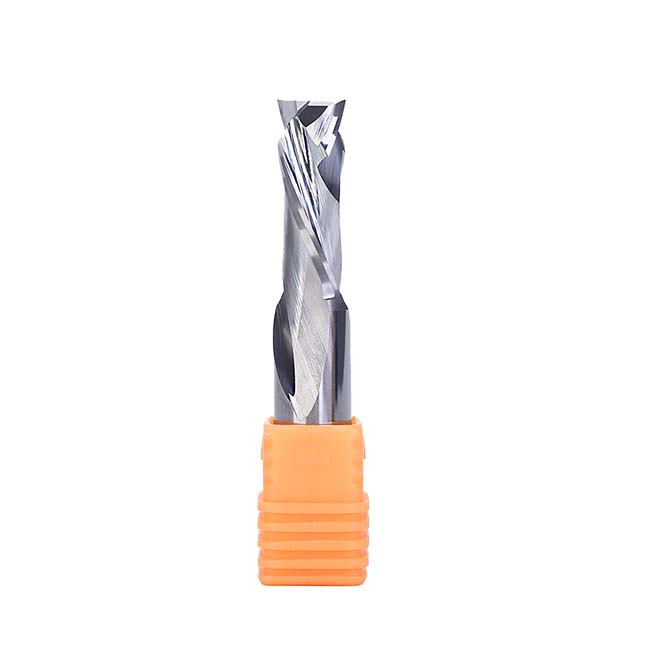

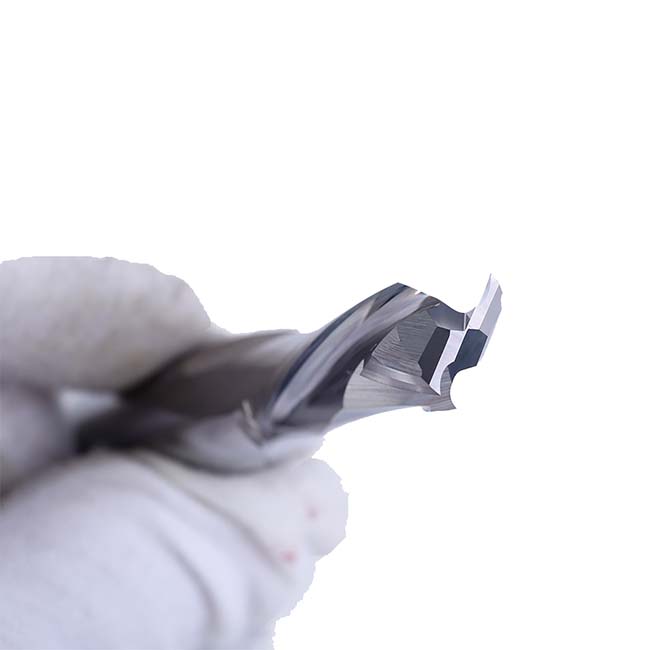

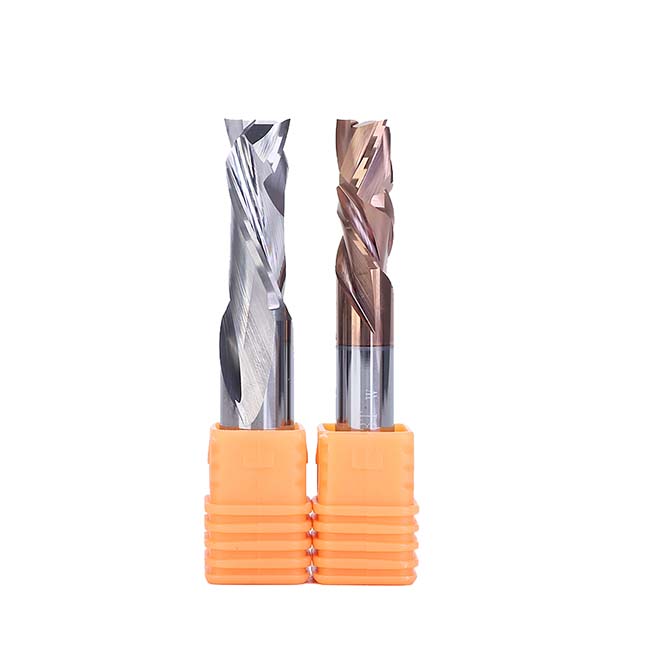

Two Flutes Compression Spiral Bits

Code:1036

Material: Carbide

Coating: No

Shank diameter: 3.175-10mm

Overall length:38-100mm

Flutes:2

End type: Center cutting

Main features

*Designed to significantly increase performance in highly balanced machining centers capable of elevated RPM and feed rates

*H6 shank tolerance for high precision tool holders

*Excellent performance in high efficiency milling

*High accuracy, not easy to wear, good sharp.

*Large discharge chute, fast processing speed, without sticking.

Application

Suitable for MDF, Plywood, Multilayer PCB and other wood processing

Flute Dia(mm)Shank Dia (mm)Flute Length(mm)Overall length (mm)Code
3.1753.175123810363112
3.1753.175153810363115
3.1753.175173810363117
3.1753.175223810363122
44174510360417
44224510360422
44254510360425
44325010360432
55176010360517
55225010360522
66175010360617
66225010360622
66255010360625
66326010360632
88256010360825
88357010360835
88458010360845
1010357510361035
1010459010361045
10105210010361052

WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.

Click to download our catalog

Speed And Feeds

Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
