Project Description

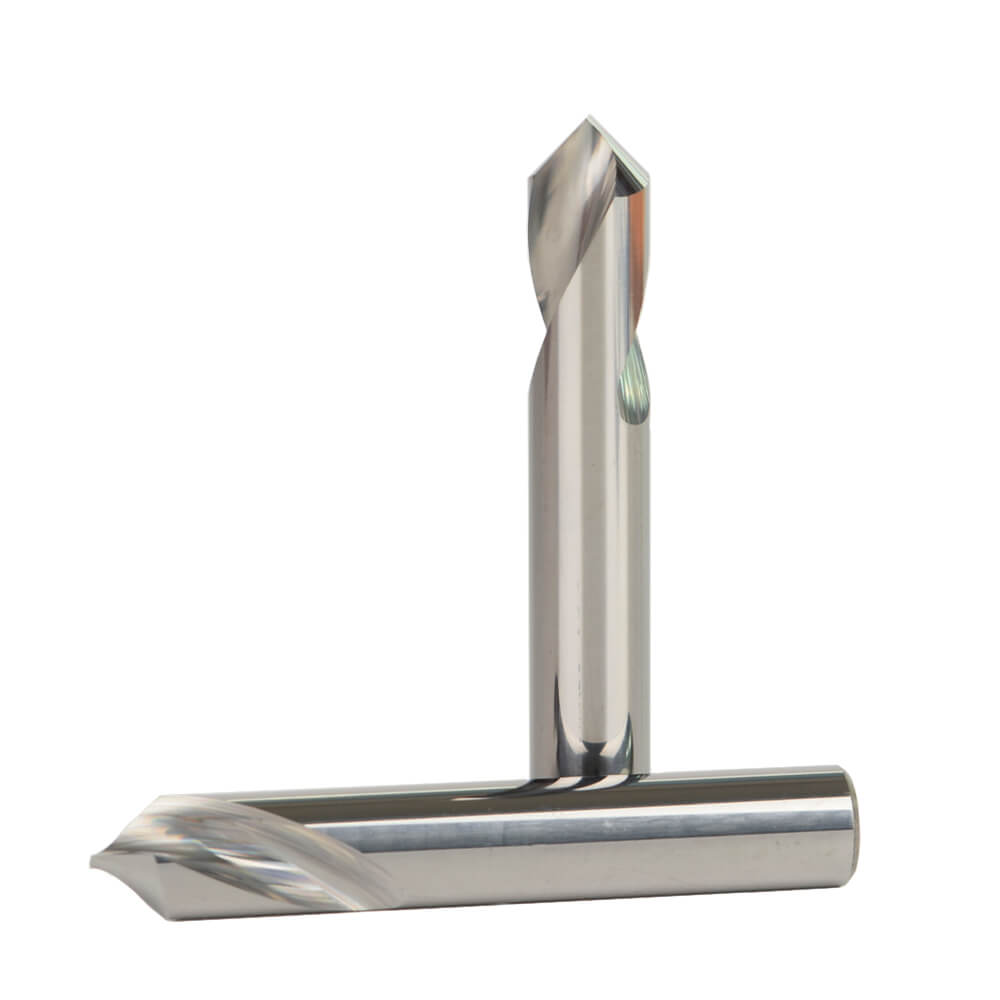

Tungsten steel centering drill

Code:1554

Material:Tungsten steel

Coating: No Coating

Angle: 60-120 °

Blade diameter: 3-12 mm

Chief: 50-75 – mm

End type:Fixed heart drill

Main features

*Tungsten steel rod, with higher wear resistance and strength, suitable for cutting various metal materials in different environments

*Chamfering design, reduce product burr during processing, better finish

* Special spiral groove design, with large and easy chip removal space to make the cutting is more smooth

*The blade adopts core double belt, fine grinding edge, Bhutan sharp and wear-resistant with home, not easy to jump blade

Application

*Apply to machined materials

Cast iron, aluminum alloy, stainless steel, alloy steel, tempered steel, spring steel

Do not recommend processing material: wood, density board, PVC, not heat conduction easy to burn cutter

Can not process material: stone, cement and other sandpaper materials

*Capable of adaptation

CNC machining center, engraving machine, high speed machine, etc

CEDOVLANGLEOrder No.
3506015553060
4506015554060
5506015555060
6506015556060
8606015558060
10756015551060
12756015551260
3509015553090
4509015554090
5509015555090
6509015556090
8609015558090
10759015551090
12759015551290
350120155530120
450120155540120
550120155550120
650120155560120
860120155580120
1075120155510120
1275120155512120

WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.

Click to download our catalog

Speed And Feeds

Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.

Contact Us: [email protected]

Click there to download files
