Project Description

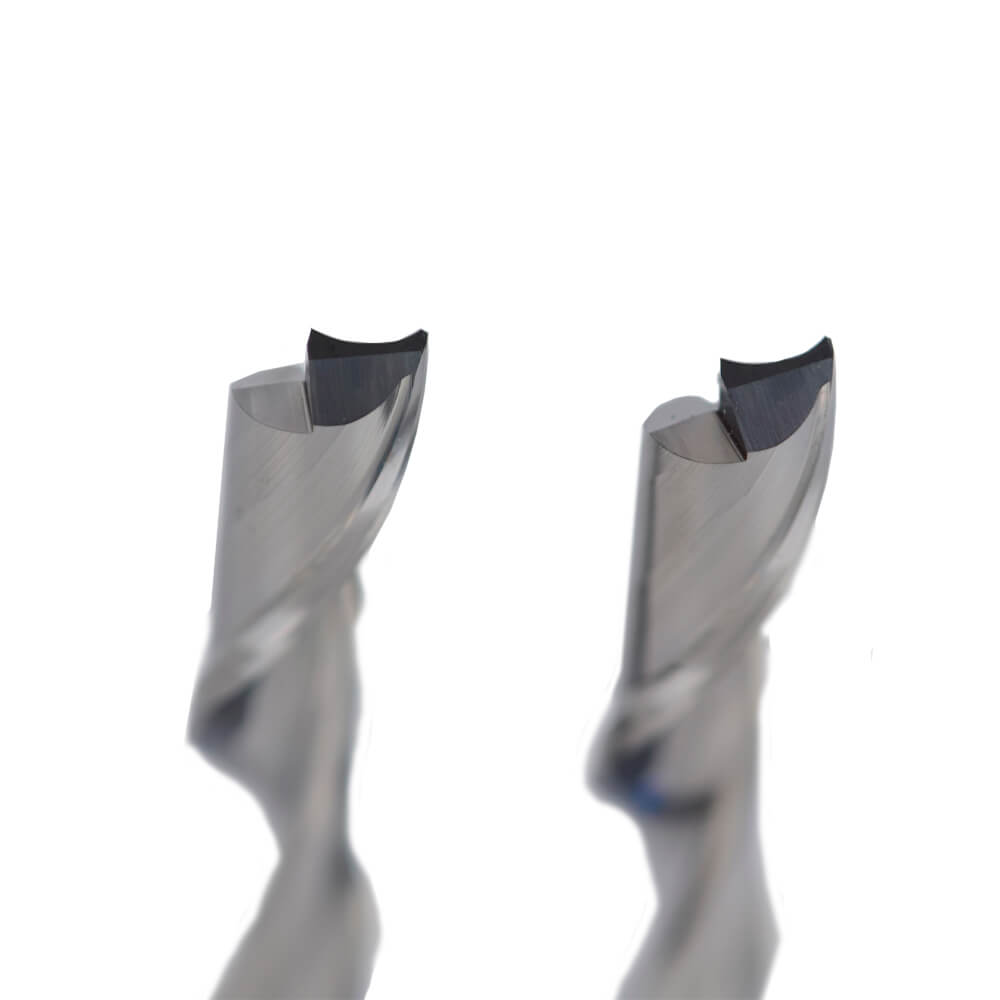

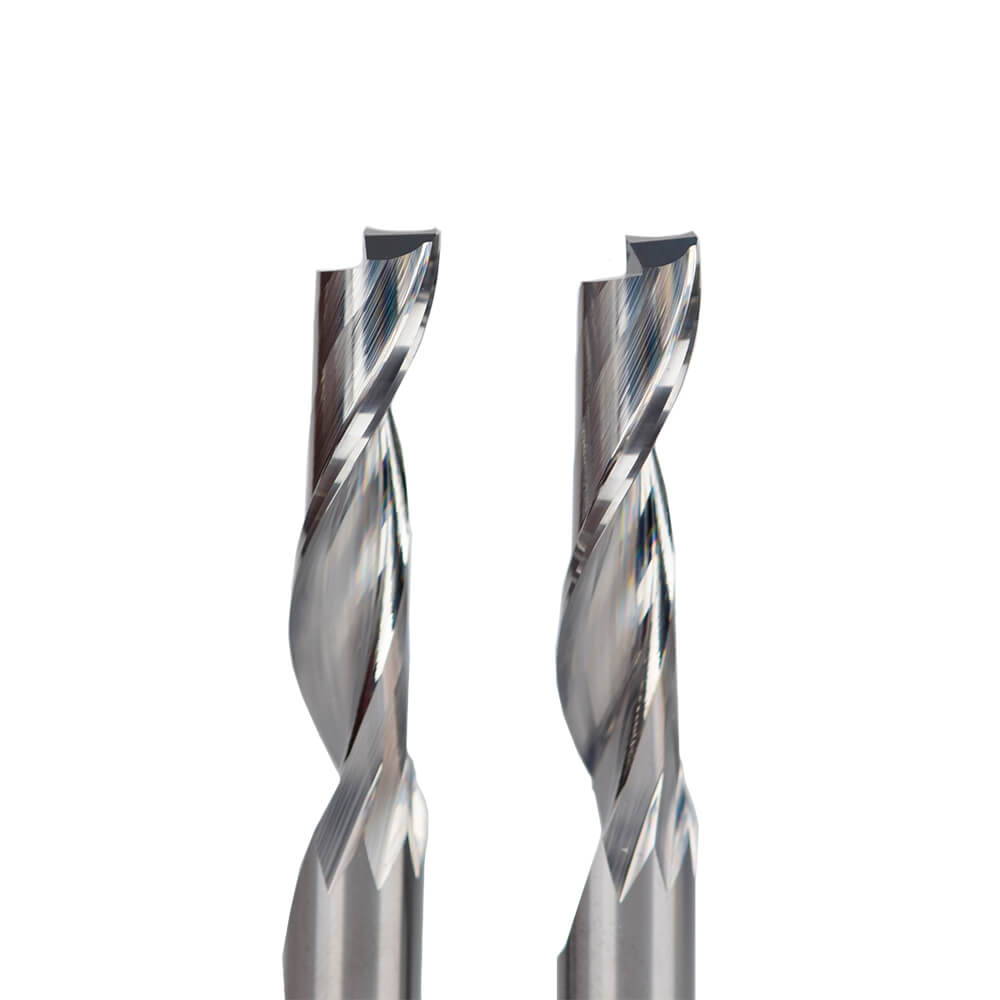

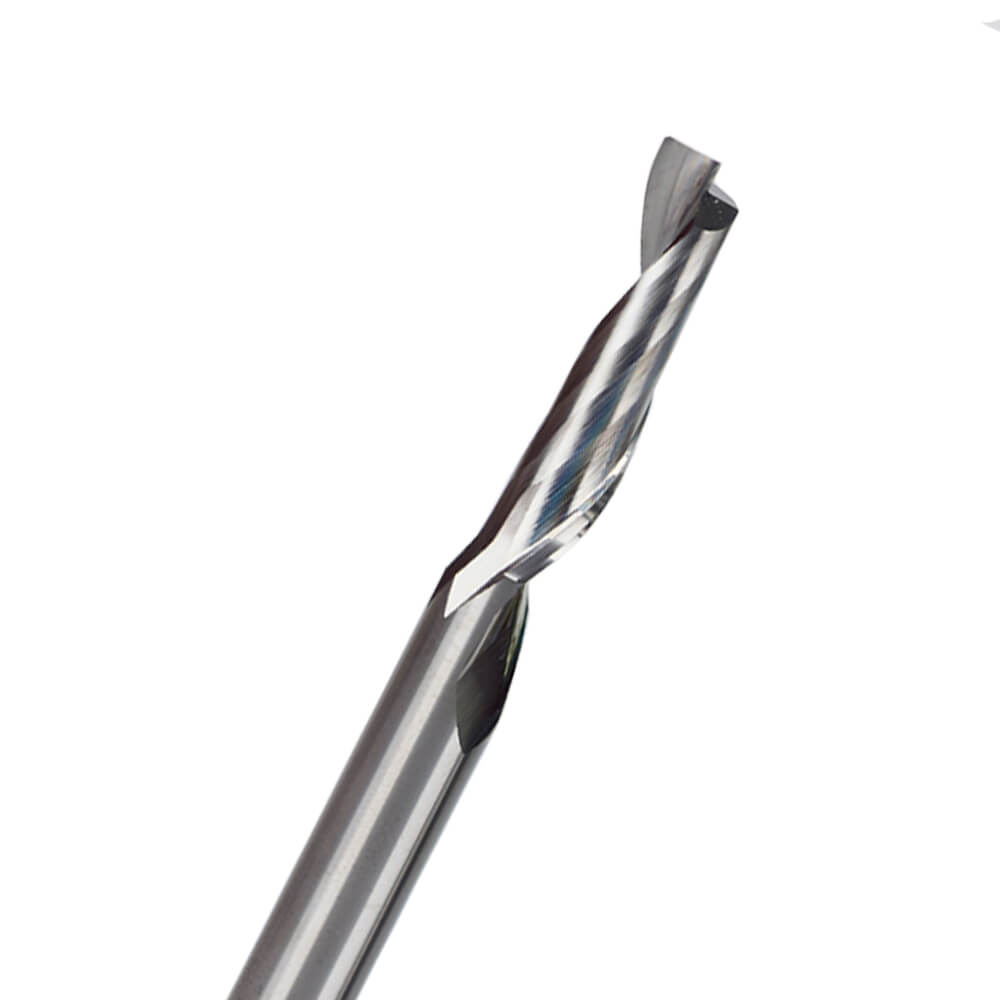

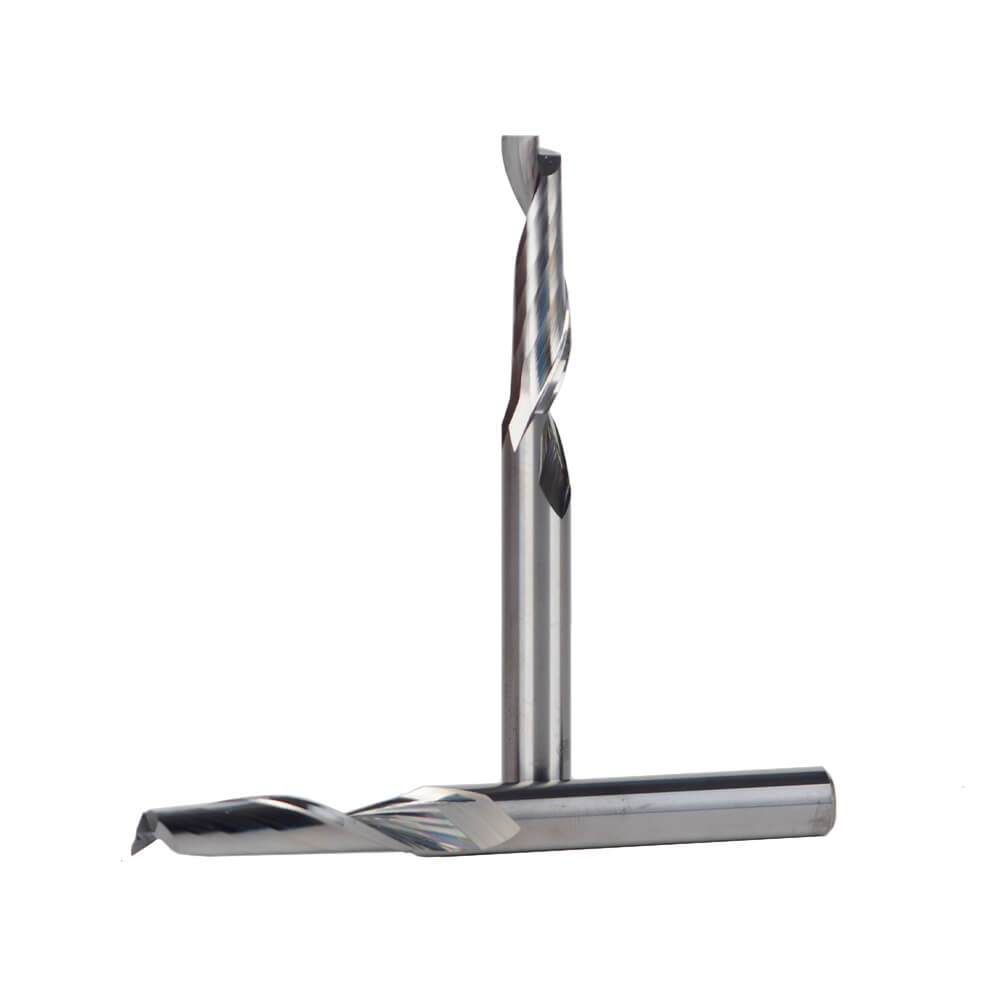

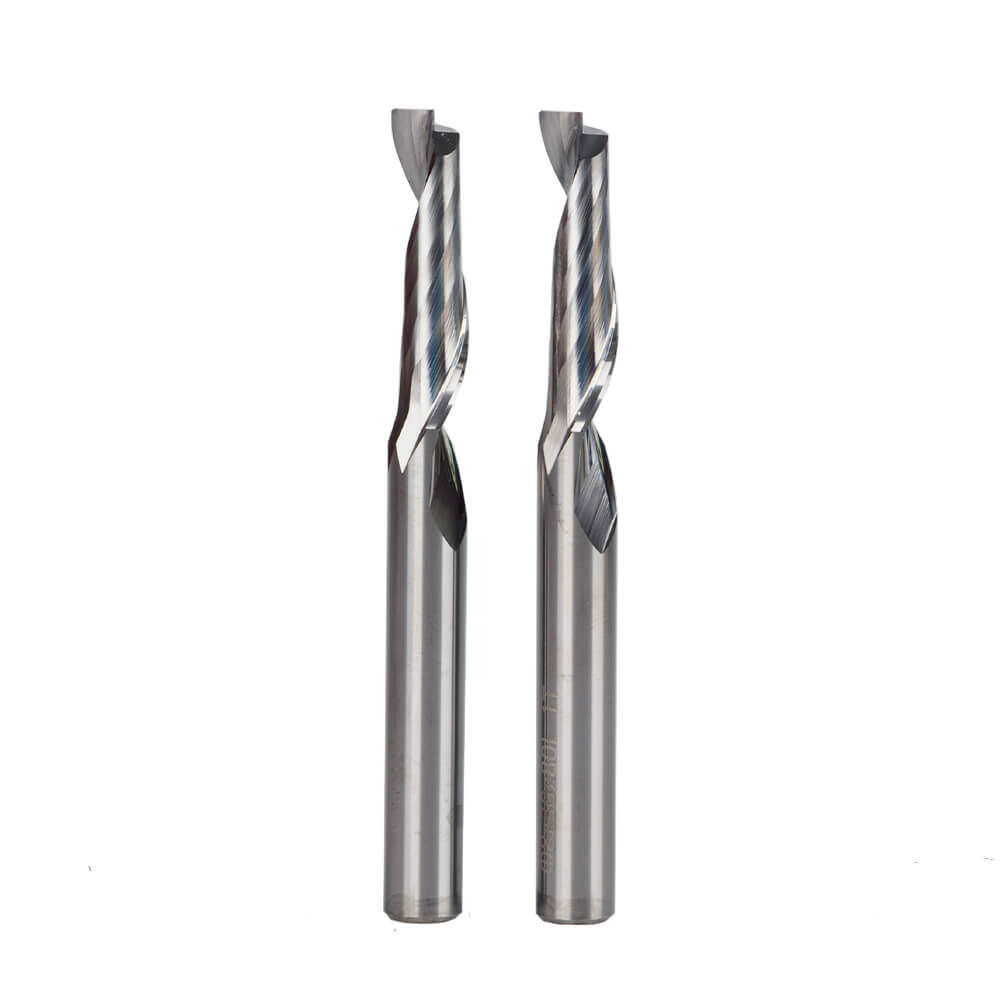

Tungsten single – edge copying cutter
Code:1078
Material:Tungsten steel
Coating: No Coating
Shank diameter: 8-12mm
Blade diameter：3-12mm
End type:woodworking
Main features
● The tungsten steel material is not easy to break the knife, and the tungsten steel material of the knife body has high resistance and strength, which is more sturdy and not easy to break the knife
● The double-edged design with sharp edge greatly enhances the rigidity and shock resistance of the knife, and effectively reduces the risk of knife breakage
● Large chip removal groove, which is conducive to the rapid discharge of waste and prevents the knife from sticking
● Imported nano-coating, suitable for high-speed cutting, better cutting performance and more anti-oxidation
Application
Suitable for processing materialsApply to
Aluminum profiles, aluminum alloy doors and windows, aluminum plastic doors and windows, aluminum alloy gold curtain walls, etc.
Adaptation Machine Capable of
CNC, CNC milling machine, engraving machine, etc.
| CED | CEL | SHK | OVL | Order No. |
|---|---|---|---|---|
| 3 | 14 | 8 | 60 | 30980314 |
| 4 | 14 | 8 | 60 | 30980414 |
| 5 | 14 | 8 | 60 | 30980514 |
| 5 | 14（35） | 8 | 80 | 309805148 |
| 5 | 14（45） | 8 | 90 | 309805149 |
| 5 | 14（45） | 8 | 100 | 309805141 |
| 6 | 14 | 8 | 60 | 309806146 |
| 6 | 14（35） | 8 | 80 | 309806148 |
| 6 | 14（45） | 8 | 90 | 309806149 |
| 6 | 14（45） | 8 | 100 | 309806141 |
| 7 | 14（35） | 8 | 100 | 309807148 |
| 7 | 30 | 8 | 100 | 30980730 |
| 8 | 20 | 8 | 80 | 30980820 |
| 8 | 30（70） | 8 | 100 | 30988301 |
| 8 | 30 | 8 | 100 | 30980830 |
| 8 | 30（70） | 8 | 120 | 30988302 |
| 10 | 14（35） | 10 | 80 | 309810148 |
| 10 | 30（70） | 10 | 100 | 309810301 |
| 10 | 30（70） | 10 | 120 | 309810302 |
| 12 | 20 | 12 | 80 | 30981220 |
| 12 | 30（70） | 12 | 100 | 309812301 |
| 12 | 30（70） | 12 | 120 | 309812302 |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
