Project Description

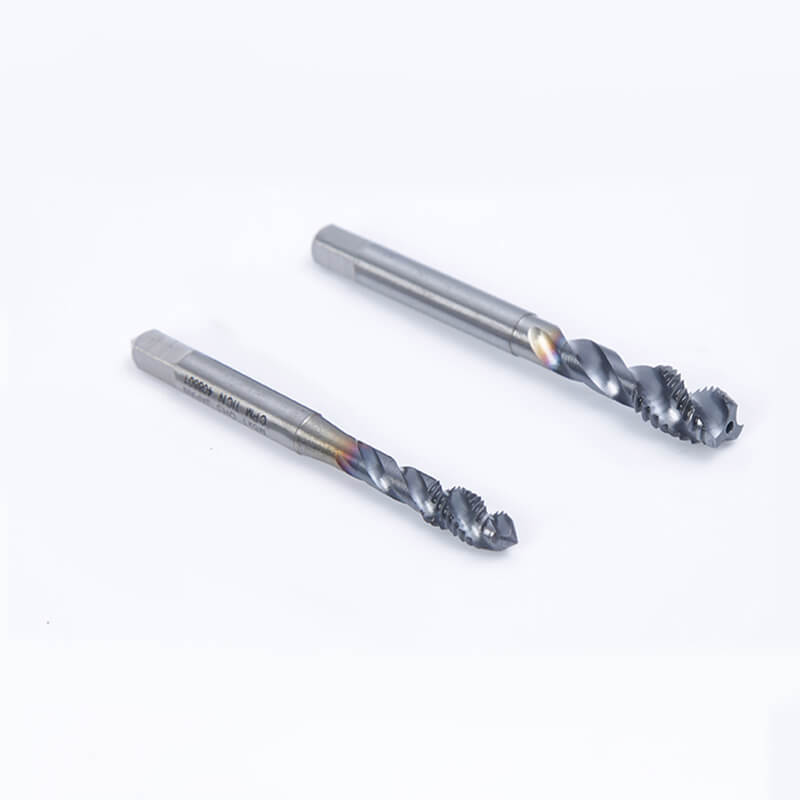

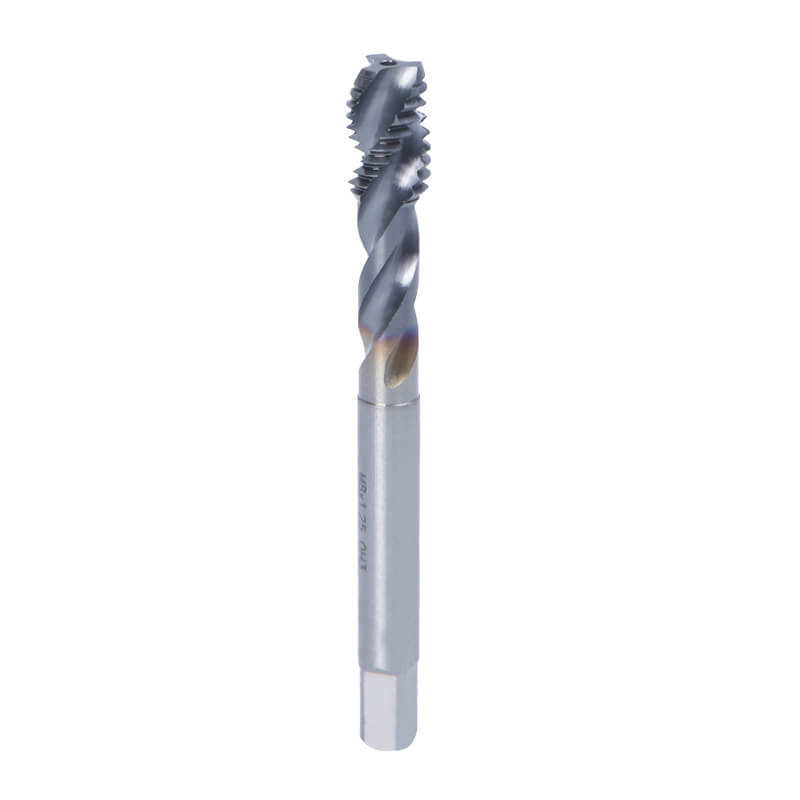

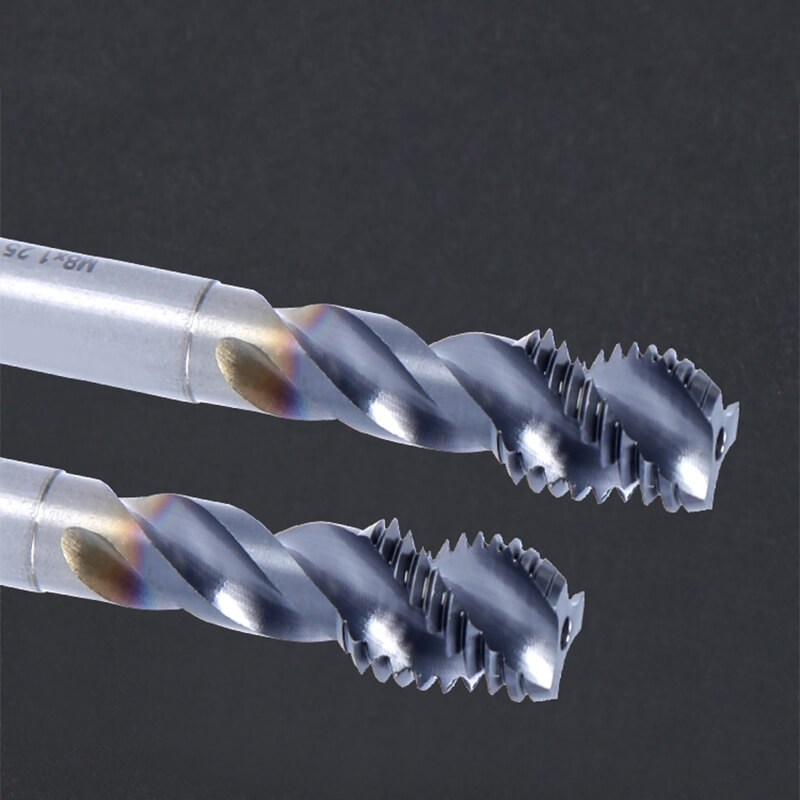

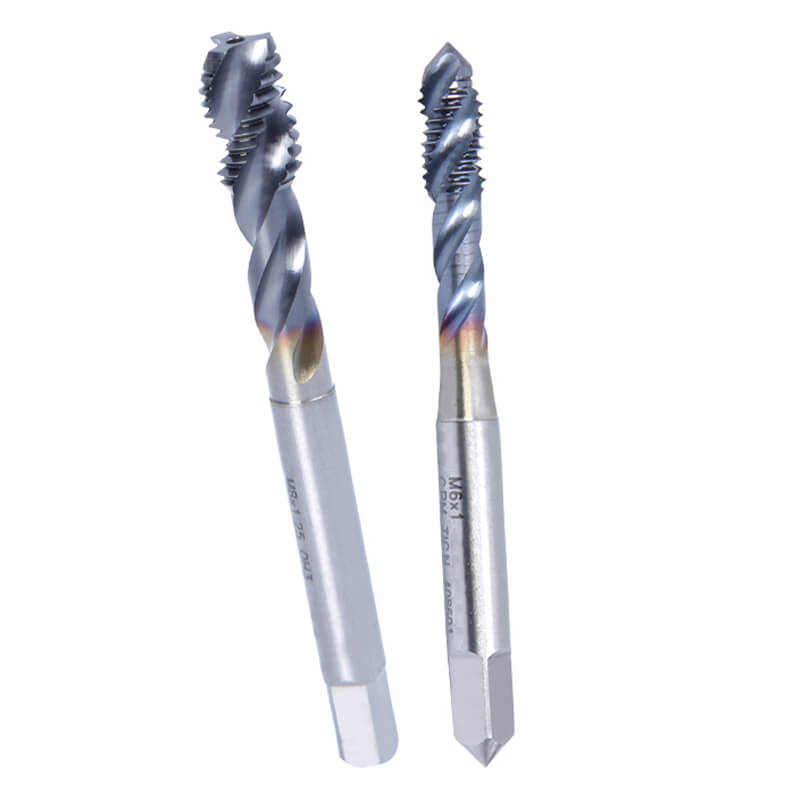

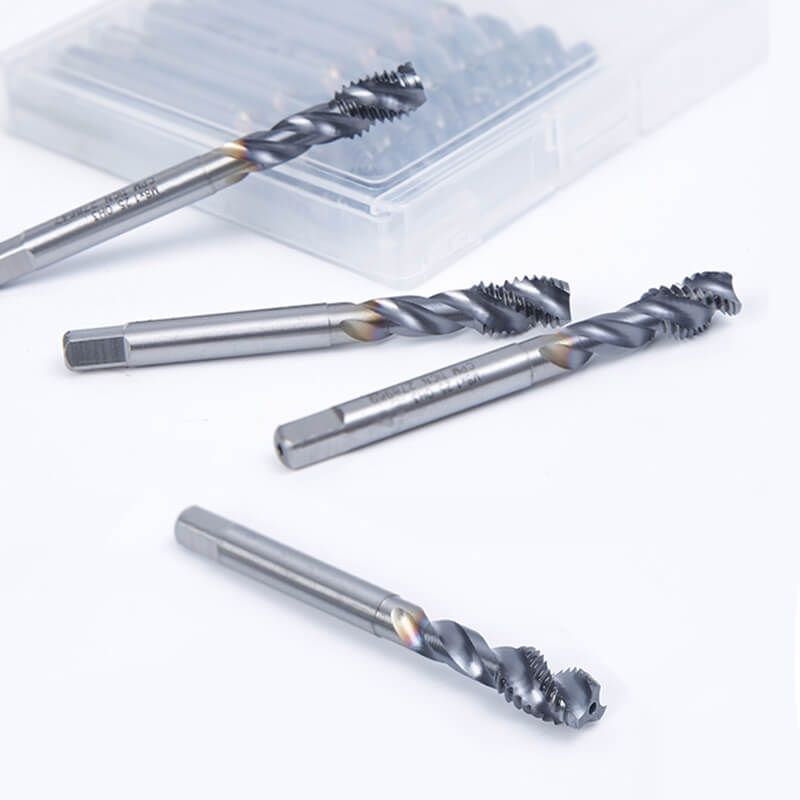

Spiral stainless steel tap
Code:5084
Material:HSS – E
Coating: No Coating
Shank diameter: 3-19 mm
Overall length: 32-120mm
End type:high speed steel
Main features
* Sharp and wear-resistant, full grinding incision, sharp and durable, high cutting edge, clear thread, small and delicate products easy to repair and grind

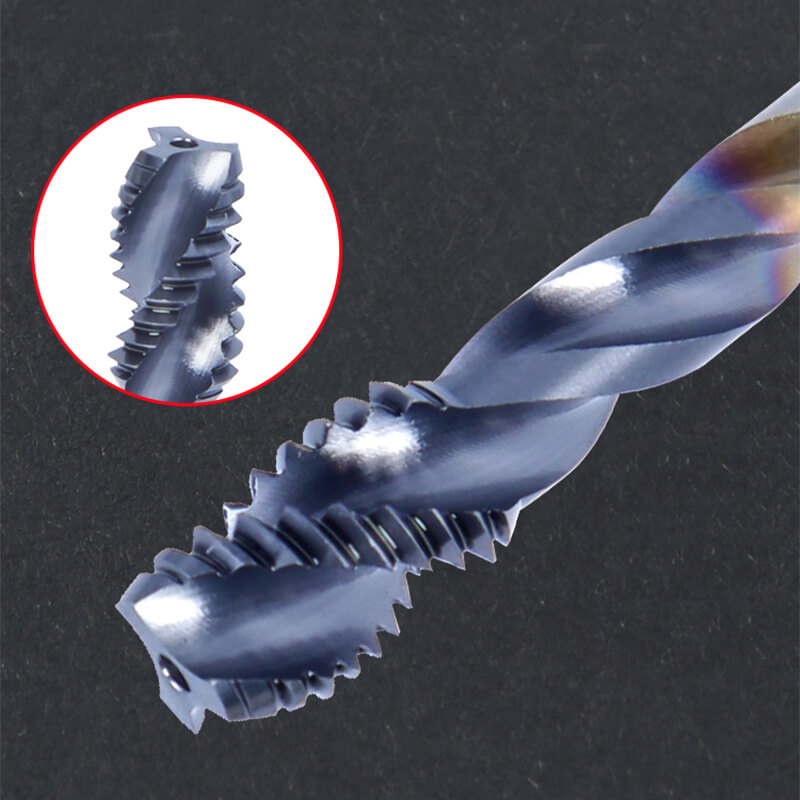

* Lower groove through hole, tip: the front end of the spiral groove, chip discharge down more smoothly, reduce cutting resistance, avoid cutting blockage caused by tapping broken or collapse edge
* Tip tap to discharge chips downward, suitable for through hole tapping
* Imported cobalt tap, wear resistance, hardness annexed processing field is wide, one is worth more than one
Application
*Apply to
Copper, stainless steel, aluminum alloy, plastic, wood, iron
*Capable of
Electric hand drill, bench drill general purpose
| CEL | OVL | CED | Product Specifications | Order No. |
|---|---|---|---|---|
| 11 | 46 | 4 | M3 | 5084003 |
| 13 | 52 | 5 | M4 | 5084004 |
| 16 | 60 | 5.5 | M5 | 5084005 |
| 19 | 62 | 6 | M6 | 5084006 |
| 22 | 70 | 6.2 | M8 | 5084008 |
| 24 | 75 | 7 | M10 | 5084010 |
| 29 | 82 | 8.5 | M12 | 5084012 |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
