Project Description

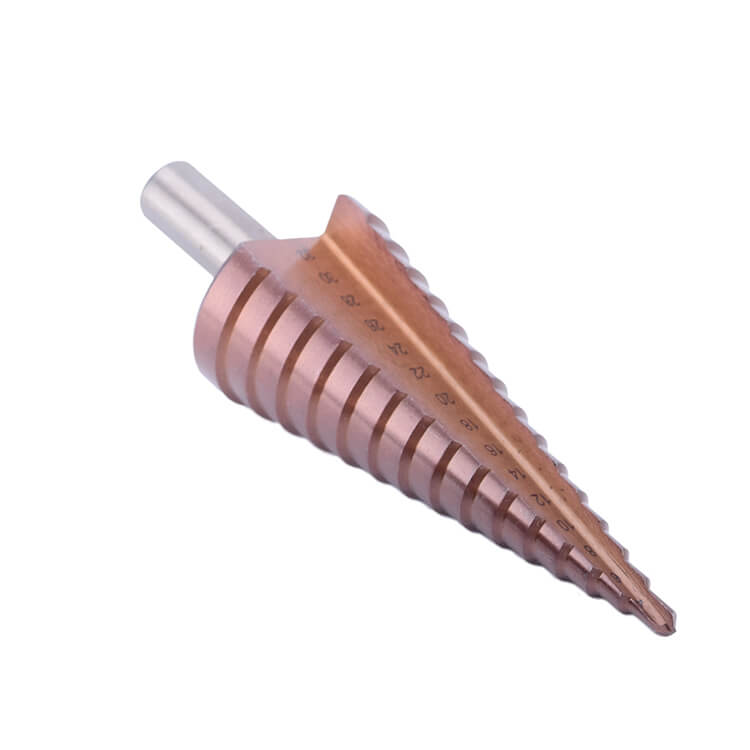

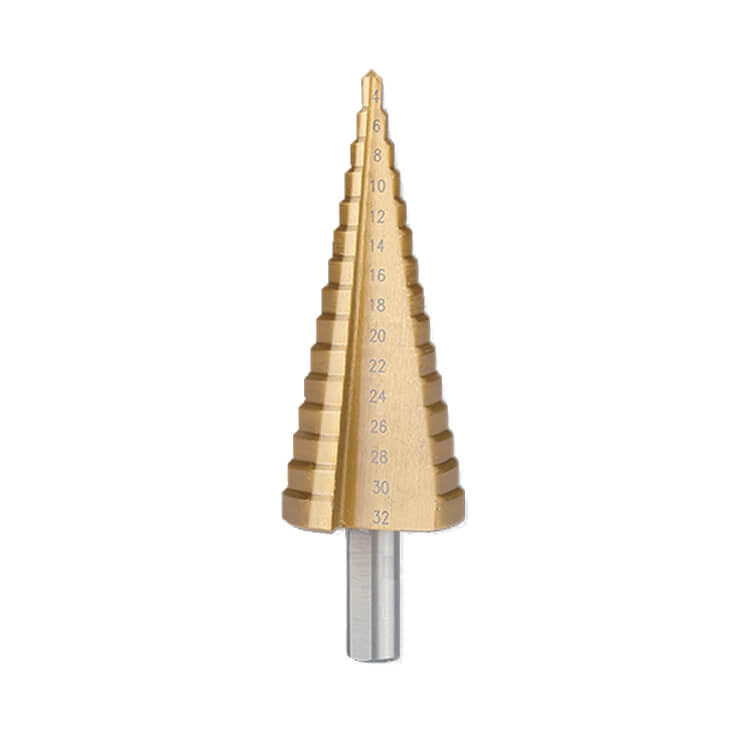

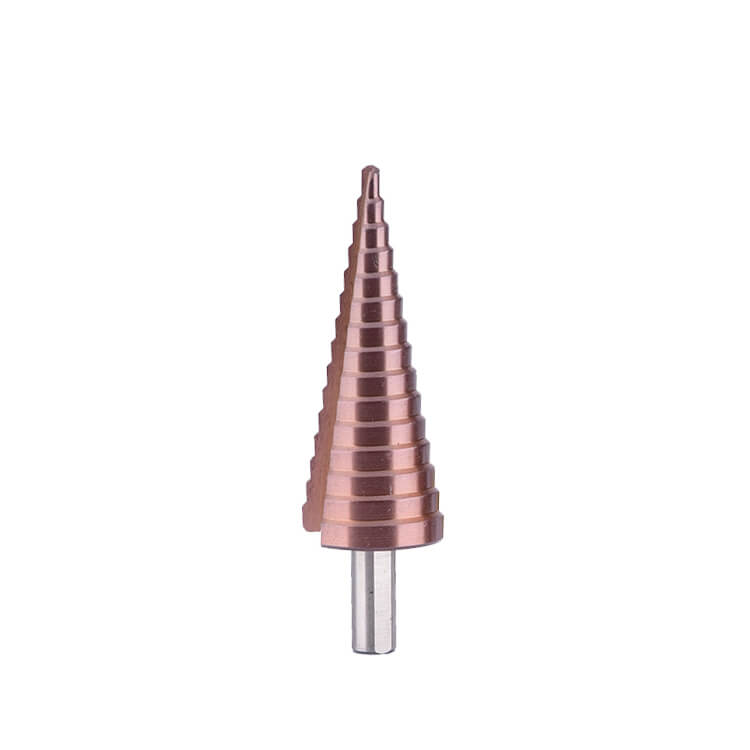

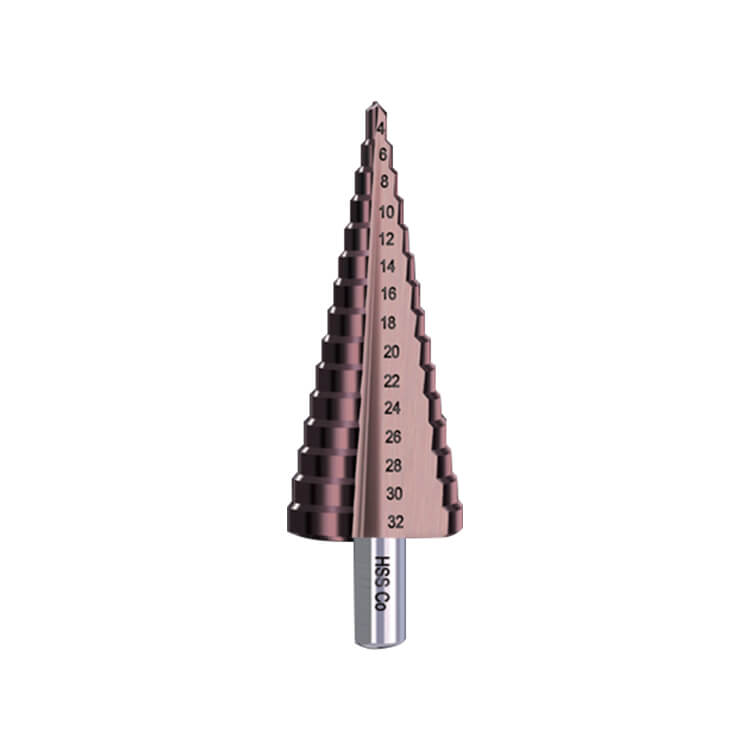

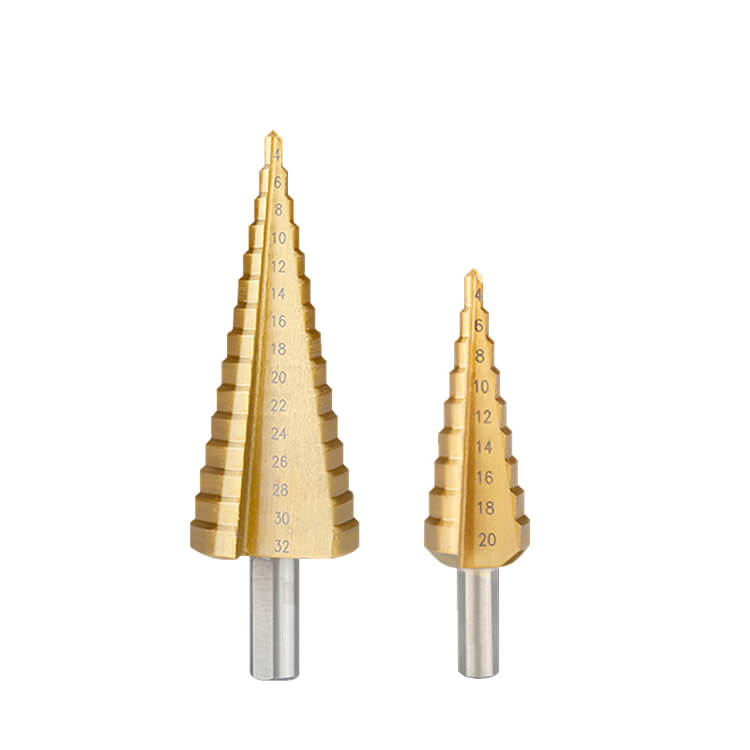

Pagoda Shape Hole Cutter

Code:3050

Material:4241 Titanium-plated high-speed steel / M35 high-speed steel containing cobalt

Opening diameter: 4-12 (9 steps) 4-20 (9 steps) 4-32 (15 steps)

Shank diameter: 6mm 8mm 10mm

Handle form: triangle shank

Type: Metal Hole Opener

Main features

*Straight grooves are suitable for efficient machining
*One drill bit can open holes of various sizes, suitable for 1-5mm thick plates
*Can be holed or chamfered
*Need to add water to cool
*1mm thick can be used with a hand electric drill. 2-5mm is recommended to use a bench drill
*118 degree apex angle
*The larger the hole diameter, the lower the speed

Application

*Apply to processing materials
4241 material suitable for processing iron, aluminum, plastic
M35 material is suitable for processing iron, aluminum, carbon steel, stainless steel, plastic

*Adapted machine Capable of
Electric hand drill

ModelProduct specificationsBlade length per stepShank diameterTotal blade lengthProduct number
HSS Straight groove4241
(5 阶)4-12mm
7mm
6mm
42mm
305044125
HSS Straight groove4241
(9 阶)4-12mm
6mm
6mm
50mm
305044129
HSS Straight groove4241
(9 阶)4-20mm
4.5mm
8mm
52mm
30504420
HSS Straight groove4241
(15 阶)4-32mm
4mm
10mm
78mm
30504432
HSS Straight groove6542
(5 阶)4-12mm
7mm
6mm
42mm
305064125
HSS Straight groove6542
(9 阶)4-12mm
6mm
6mm
50mm
305064129
HSS Straight groove6542
(9 阶)4-20mm
4.5mm
8mm
52mm
30506420
HSS Straight groove6542
(15 阶)4-32mm
4mm
10mm
78mm
30506432
With drill straight flute M35
(5 阶)4-12mm
8mm
6mm
43mm
305034125
With drill straight flute M35
(9 阶)4-12mm
4.5mm
6mm
42mm
305034129
With drill straight flute M35
(9 阶)4-20mm
4.5mm
8mm
52mm
30503420
With drill straight flute M35
(15 阶)4-32mm
4mm
10mm
78mm
30503432
