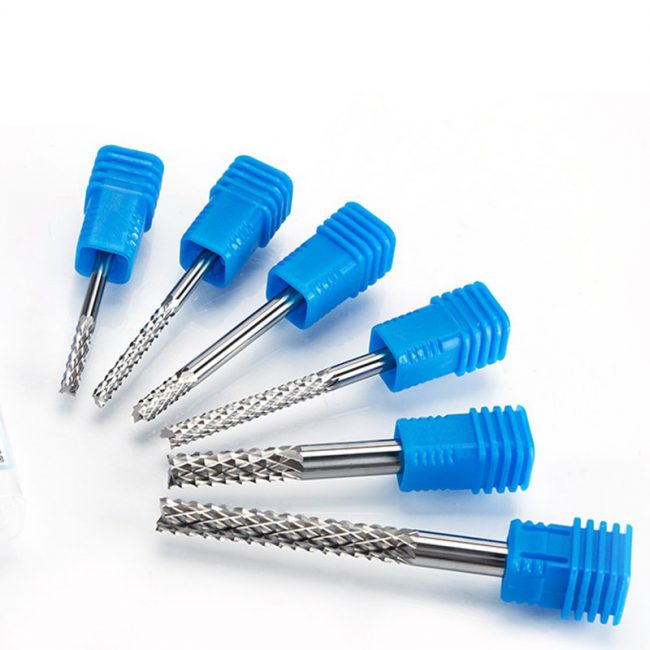

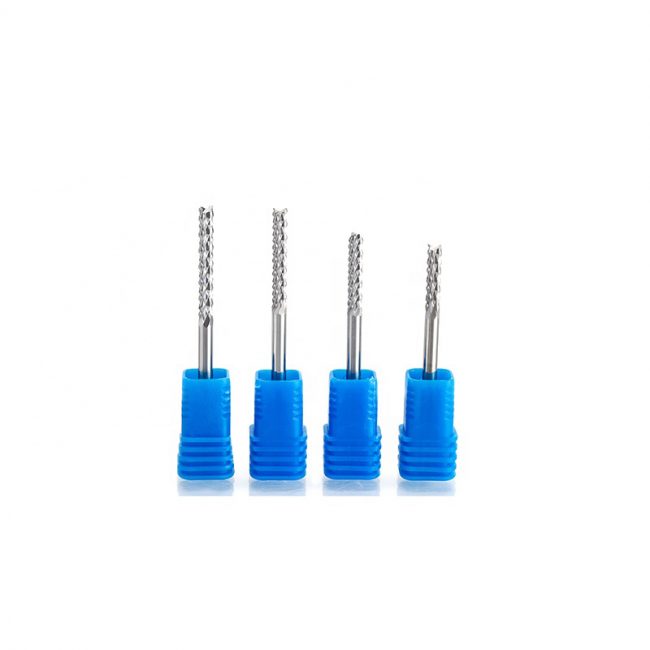

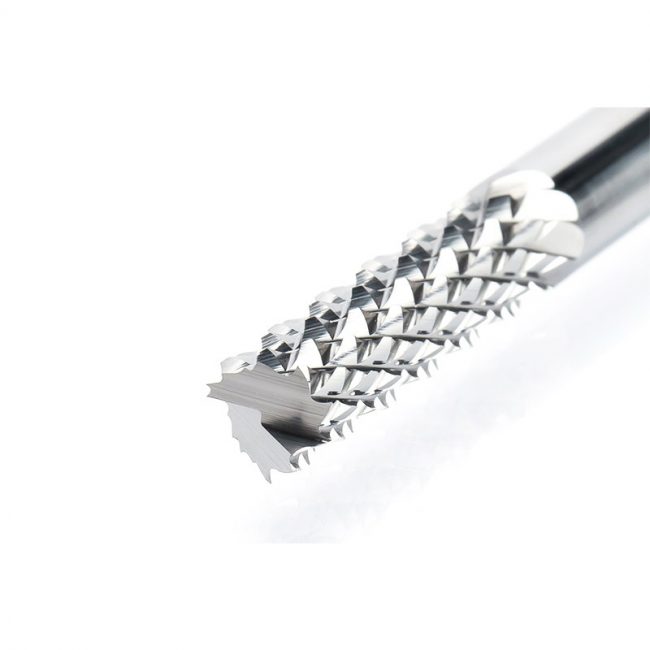

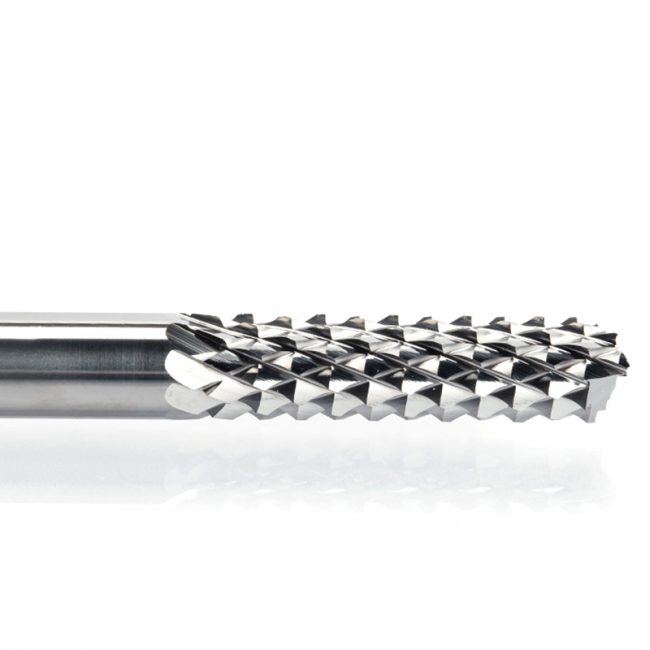

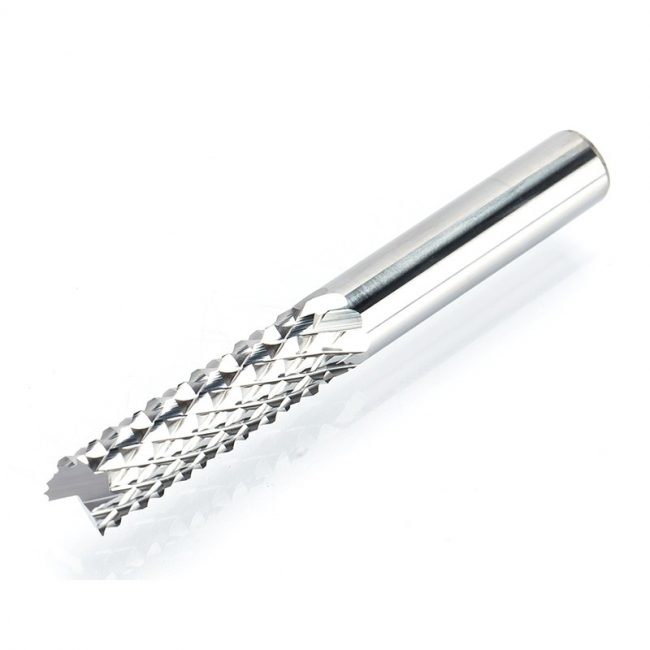

Corn Milling Cutter

Code:1008

Material: Carbide

Coating: No Coating

Shank diameter: 3.175-12 mm

Overall length: 38-100mm

End type: Center cutting

Main features

*Double-edged positive and negative spiral chip removal structure for long service life

*Sharp edge and high wear resistance, professionally designed for wood milling.

*Cutting the upper and lower sides smooth and burr-free.

*Large spiral flute, imported tungsten steel base material

Application

Wood processing,MDF,plywood and multilayer PCB, aluminum-plastic panels,such as cutting hollow

Flute Dia(mm)Flute Length(mm)Shank Dia (mm)Overall length (mm)Code
0.523.17538100800502
0.823.17538100800802
173.1753810080107
1.273.1753810081207
1.583.1753810081508
1.893.1753810081809
2103.1753810080210
2.5123.1753810082512
3.175123.1753810083112
3.175173.1753810083117
3.175223.1754510083122
3.175253.1754510083125
41744510080417
42244510080422
42545010080425
42845010080428
43245510080432
62265010080622
62565010080625
62866010080628
63266010080632
64267510080642
65268510080652
82586010080825
83587510080835
84287510080842
85289010080852
10421010010081042
10521010010081052
12451210010081245
12551210010081255
