Project Description

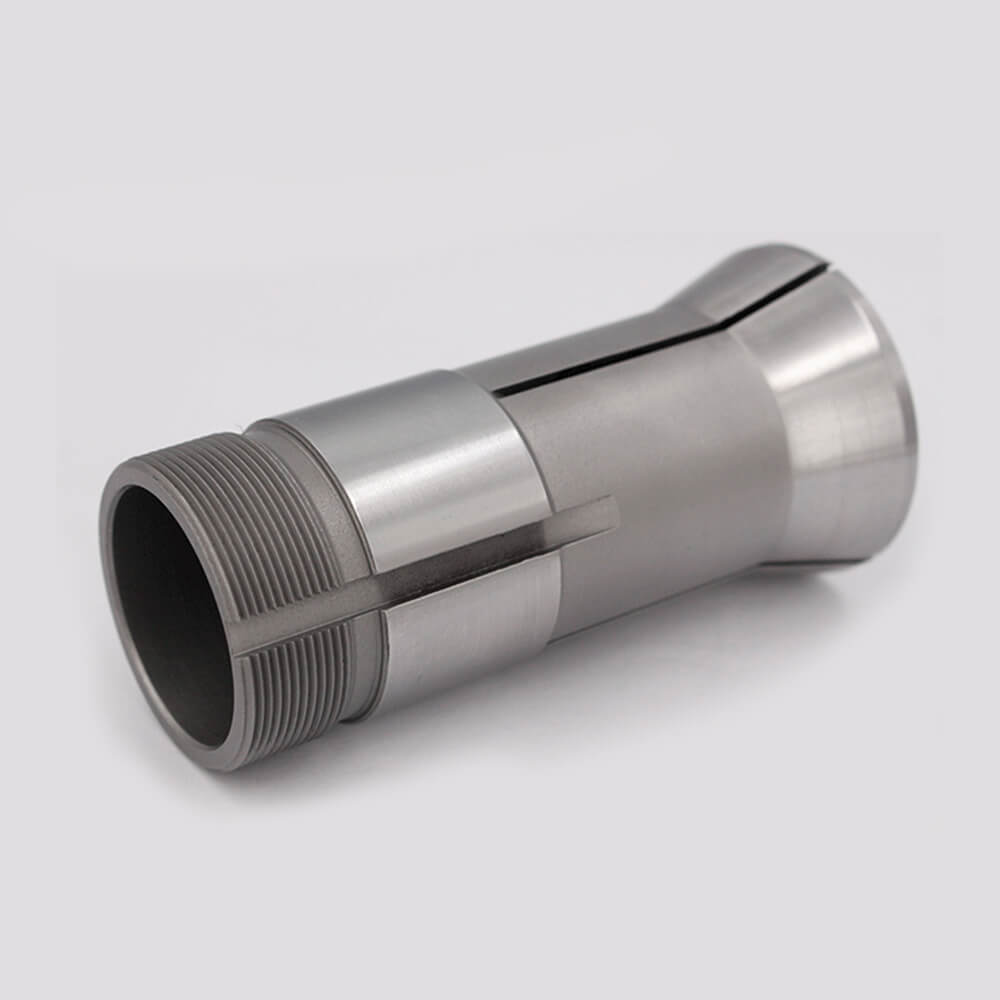

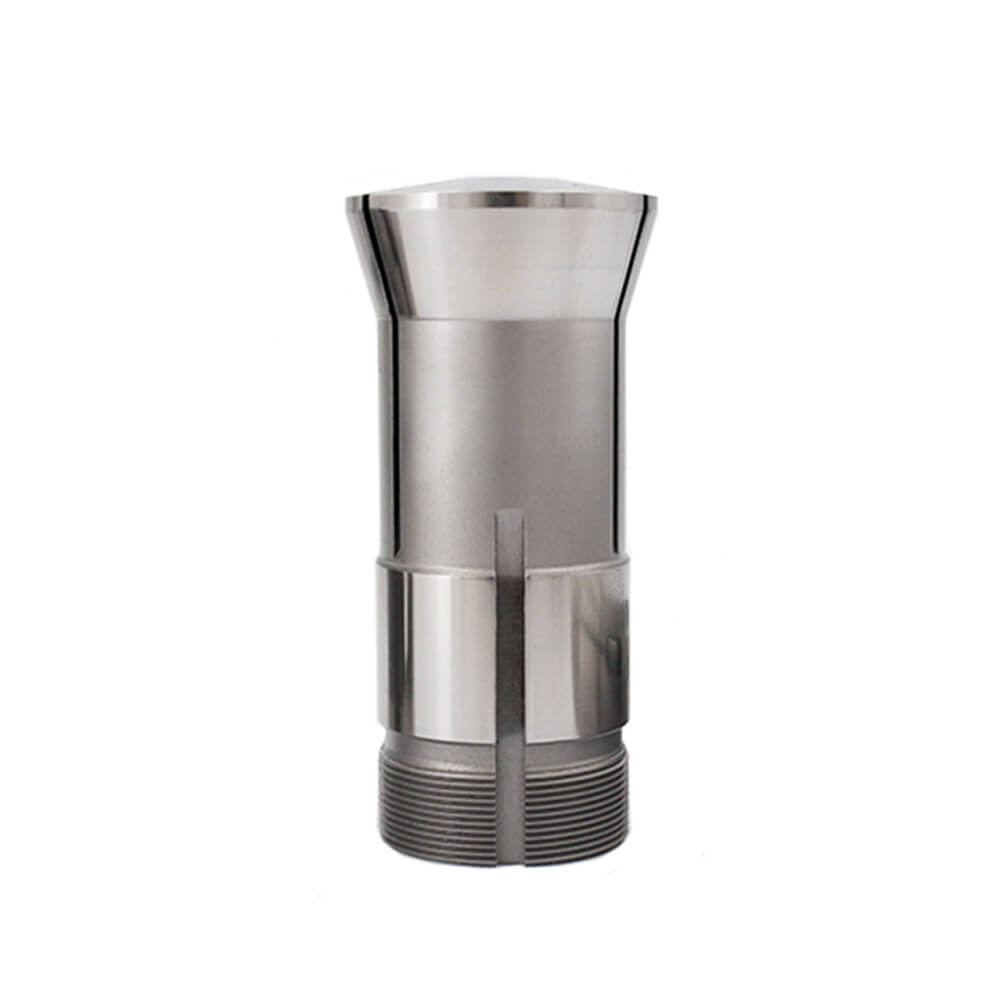

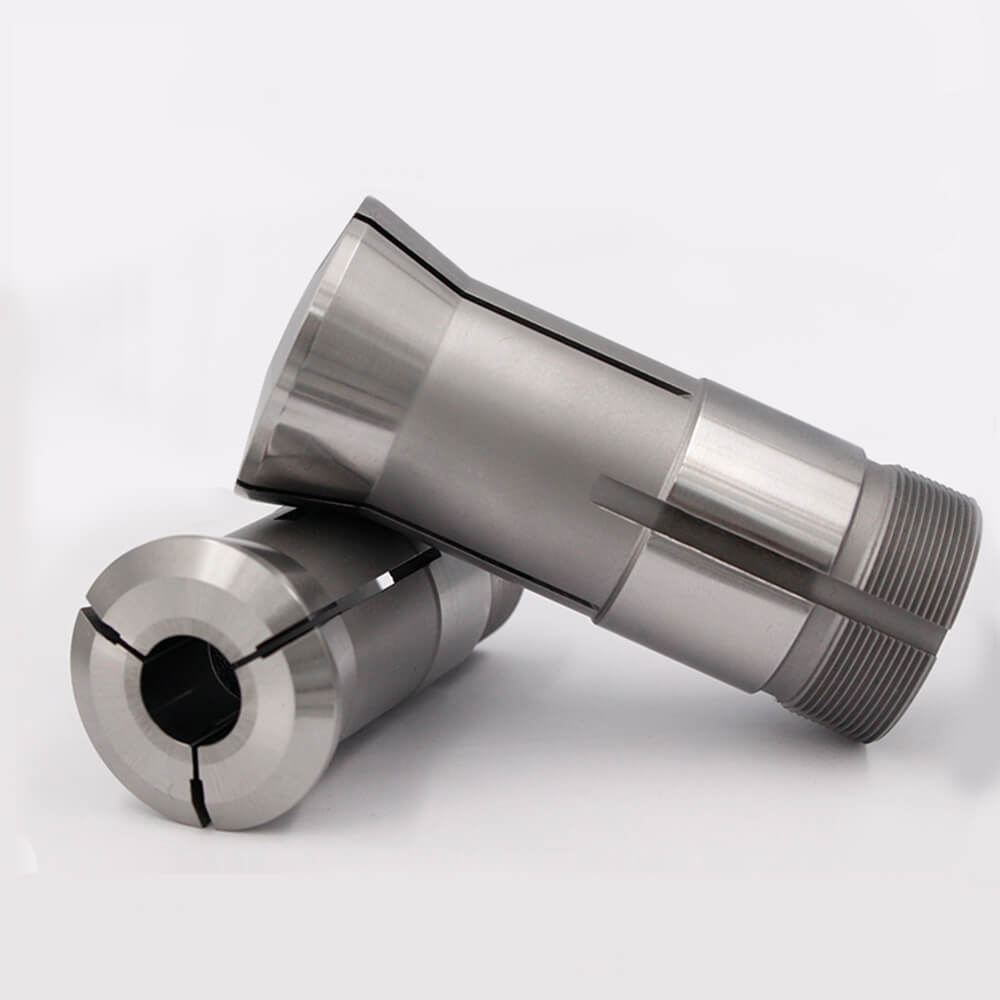

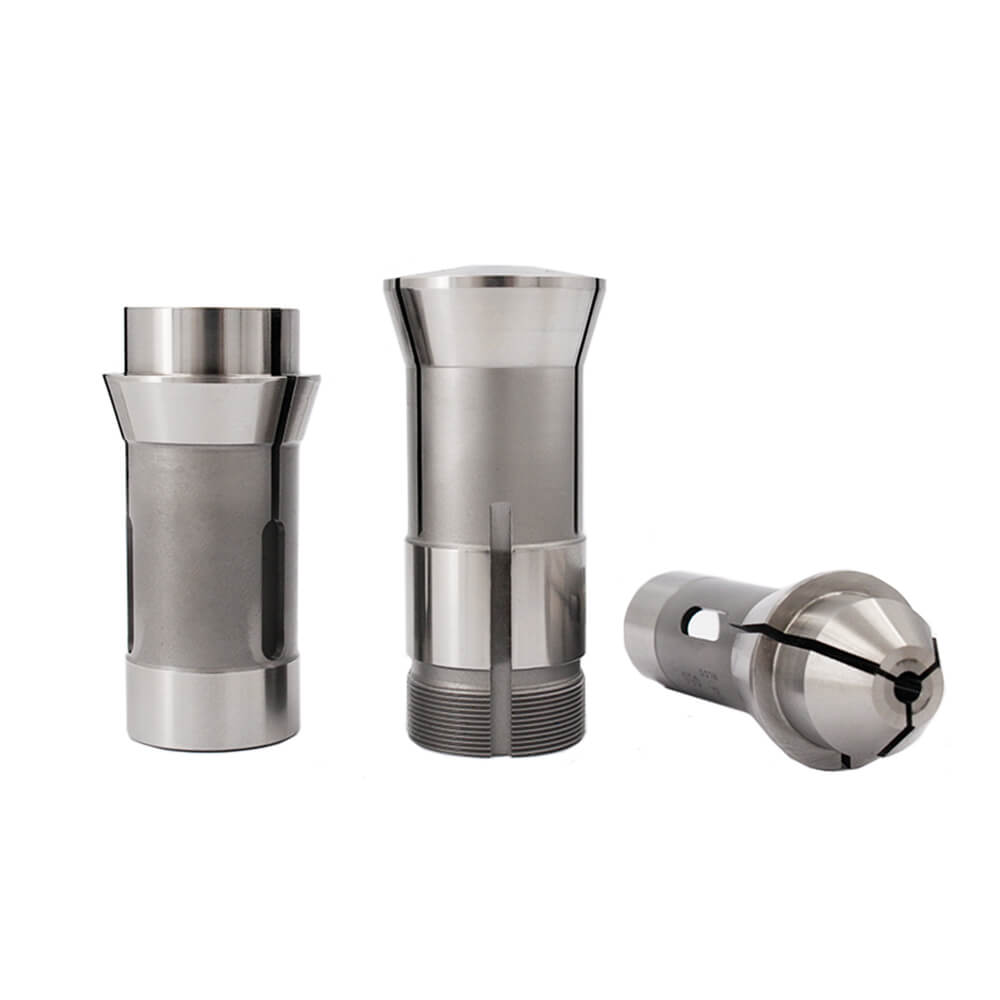

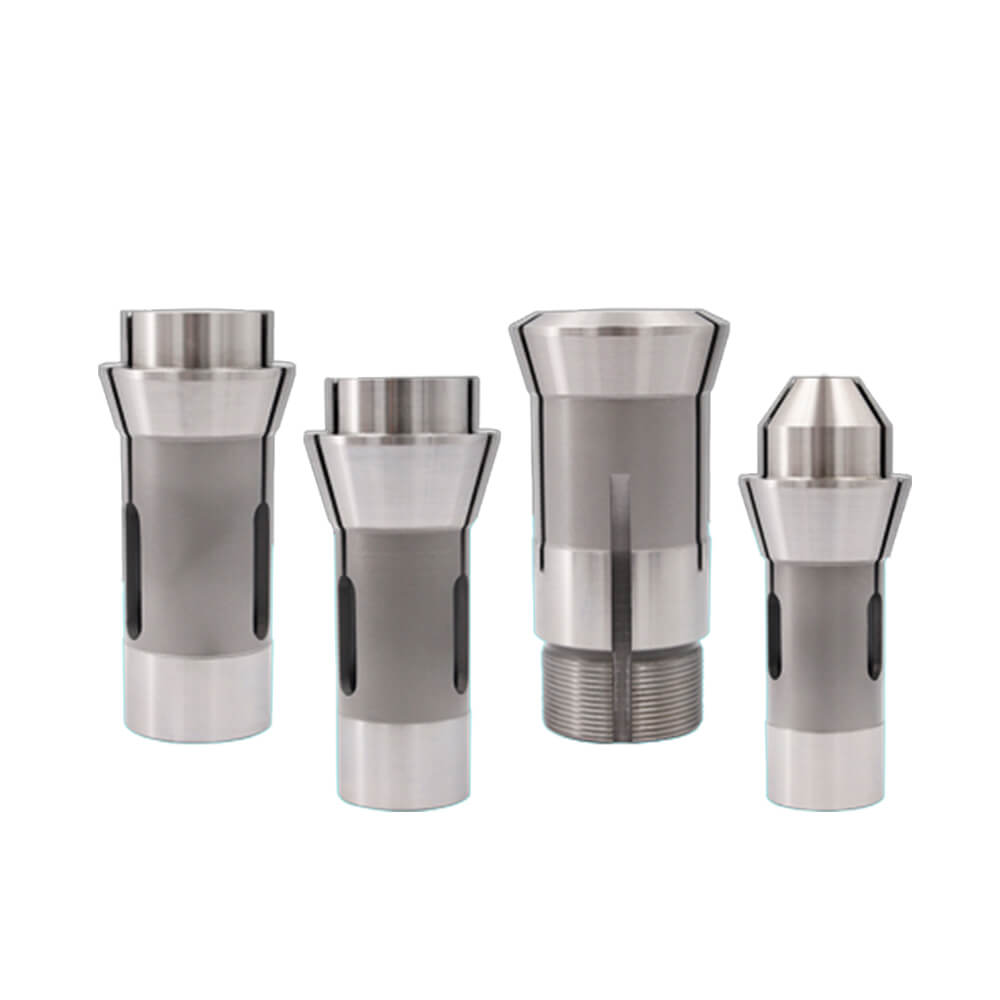

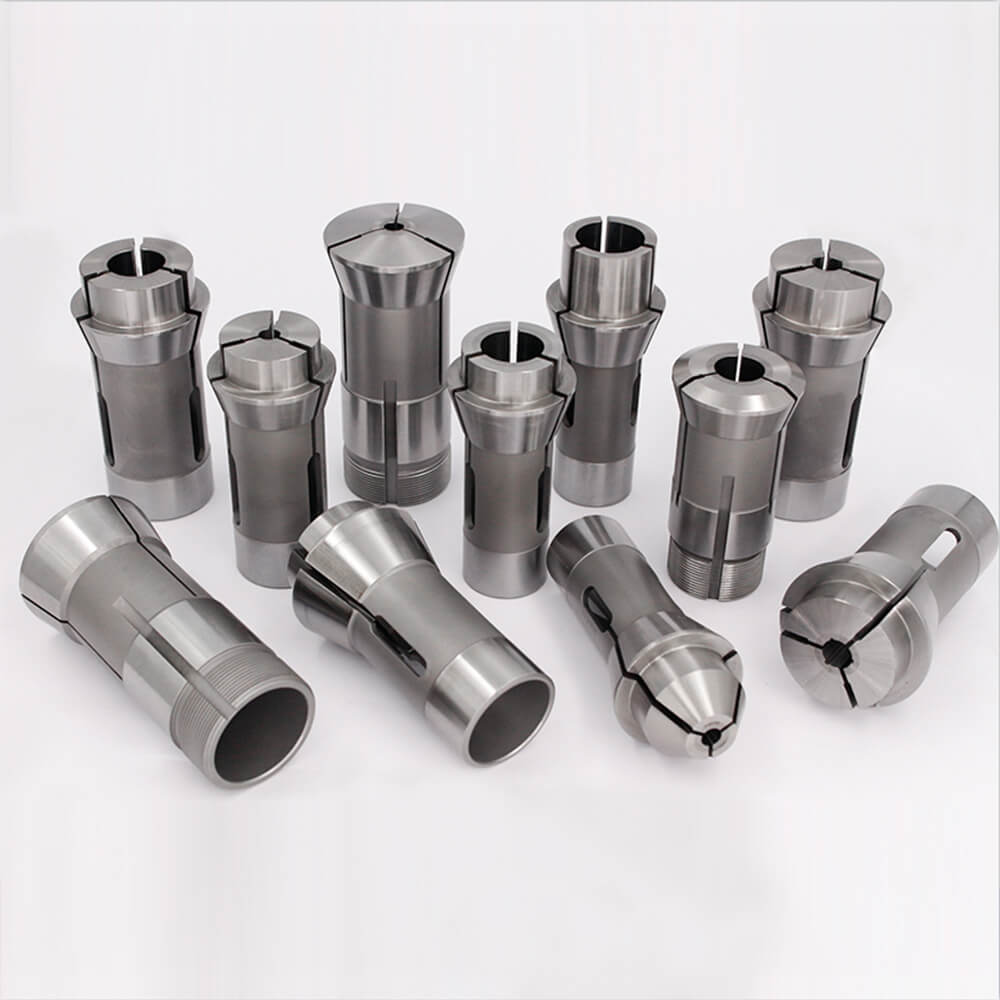

CNC walking collet

Code:5133

Type: chuck

Material: spring steel

Model: 12#, 16#, 20#, 25#, 26#, 32#,

Accuracy: 0.005 mm

Main features

*High quality material, made of spring steel, prolong the use of chuck elasticity and service life

* High precision, Taiwan manufacturing process is mature, and the use of imported CNC grinding machine grinding, stable accuracy

*Durable, after heat treatment and cold drawing hardening, high strength, with a certain flexibility and plasticity, enhance the elasticity and clamping force and service life

Application

/

ModelInner hole sizeaccuracy classOrder NO.
12#
The main clip
1.0-12.00.0055133001
12#
guide bushing
1.0-12.00.0055133002
16#
The main clip
1.0-12.00.0055133003
16#
guide bushing
1.0-12.00.0055133004
20#
The main clip
1.0-12.00.0055133005
20#
guide bushing
1.0-12.00.0055133006
20#
back splint
1.0-12.00.0055133007s
