Project Description

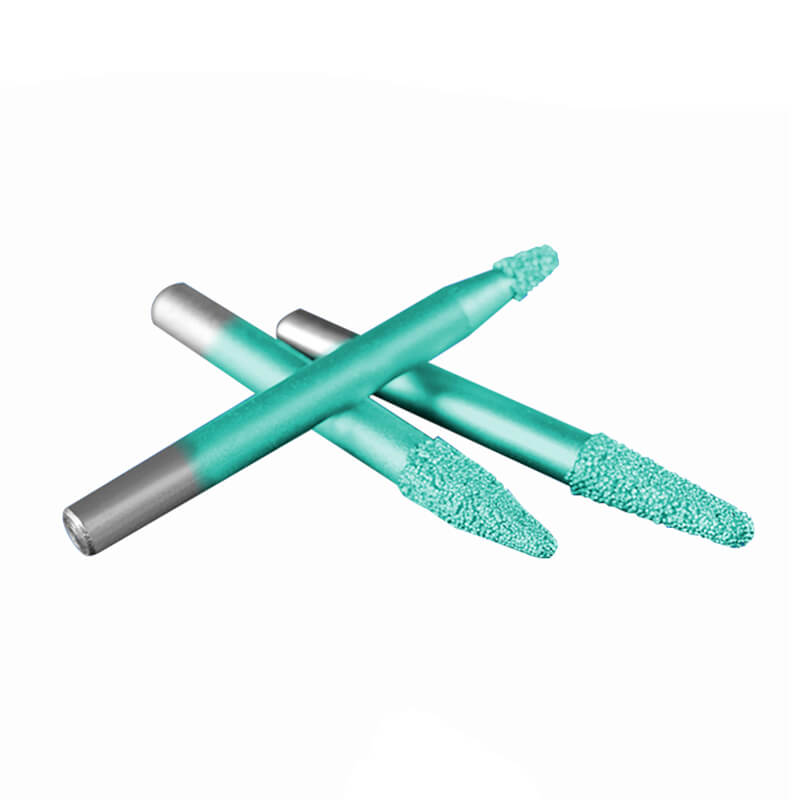

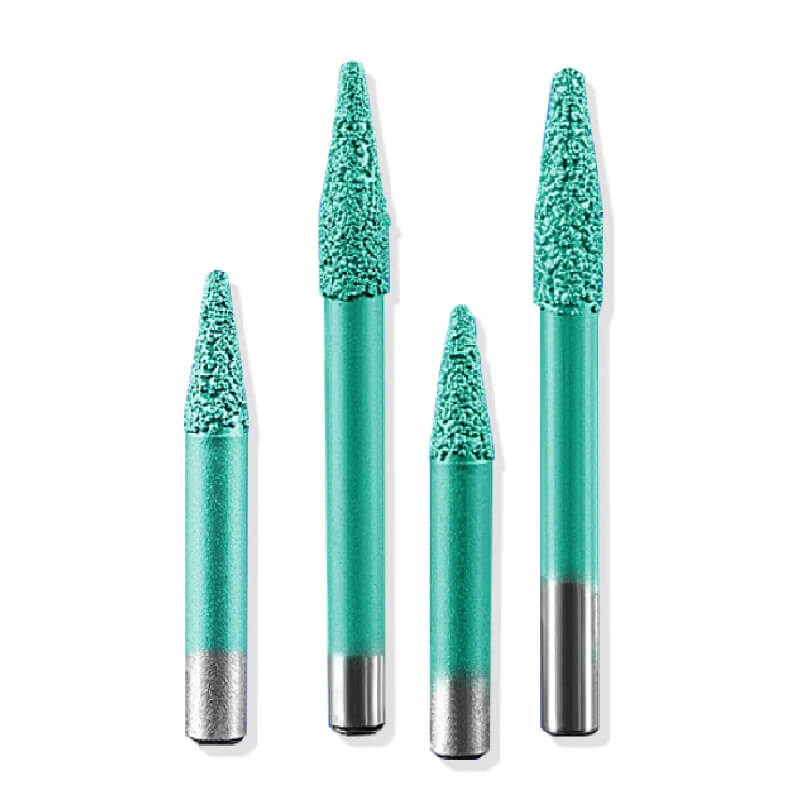

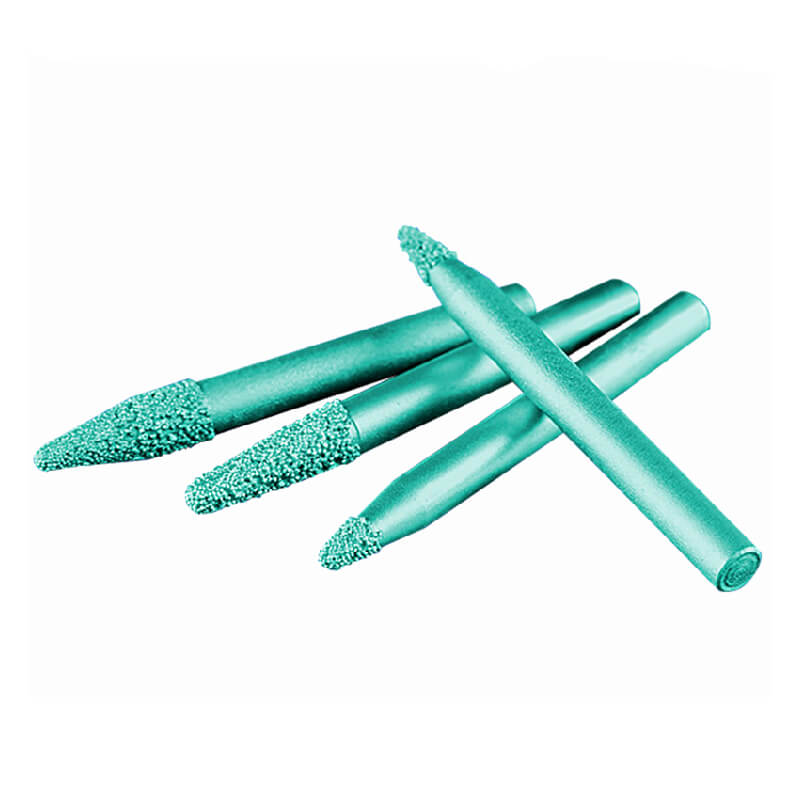

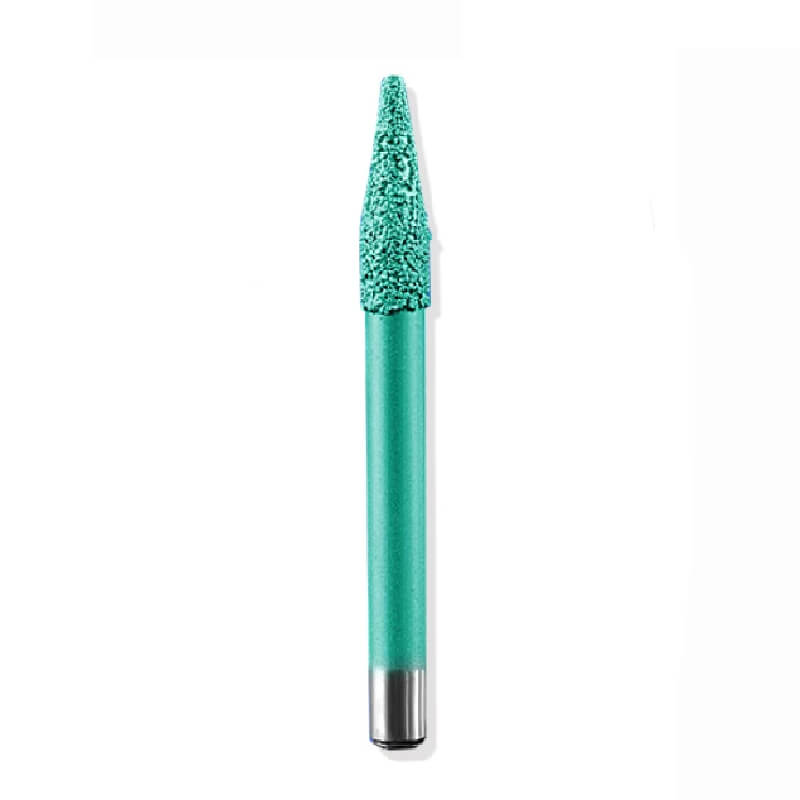

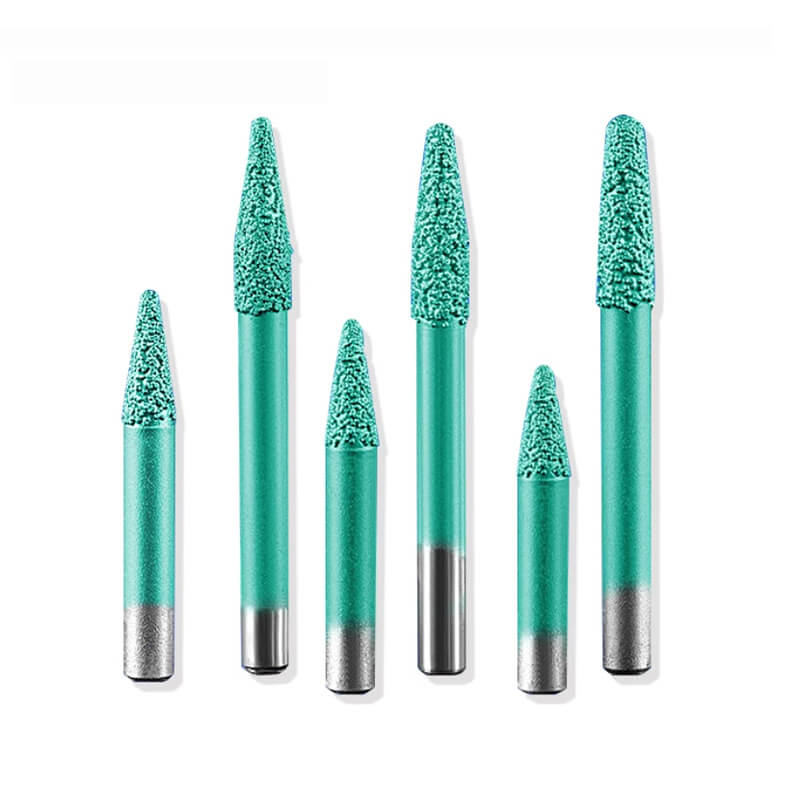

Brazing stone engraving bits tapered no groove

Code:1040

Material:Emery+Cemented Carbide

Coating: No Coating

Shank diameter: 6-10 mm

Overall length:60-120mm

End type:Brazed Stone Knife

Main features

*The diamond grain of the cutter head is uniform

*Sharp cutting, not easy to wear

*Sturdy Continuous Cutter

*High temperature lacquer coating on cutter head, anti-oxidation

Application

*Suitable for processing materialsApply to
Carving of marble, bluestone, white marble, sandstone, etc.

*Adaptation Machine Capable of
Advertising engraving machine cnc CNC machine

Tool nose diameterSHKCELOVLProduct SpecificationsProduct code
16660ZD6.1-610401606
26660ZD6.2-610402606
36660ZD6.3-610403606
361260ZD6.3-1210403612
362060ZD6.3-2010403620
462060ZD6.4-2010404620
382060ZD8.3-2010403820
482060ZD8.4-2010404820
582060ZD8.5-2010405820
682060ZD8.6-2010406820
383090ZD8.3-3010403830
483090ZD8.4-3010404830
583090ZD8.5-3010405830
683090ZD8.6-3010406830
3103090ZD10.3-30104031030
4103090ZD10.4-30104041030
5103090ZD10.5-30104051030
6103090ZD10.6-30104061030
8103090ZD10.8-30104081030
31050120ZD10.3-40104031040
41050120ZD10.4-40104041040
51050120ZD10.5-40104051040
61050120ZD10.6-40104061040
81050120ZD10.8-40104081040

WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.

Click to download our catalog

Speed And Feeds

Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
