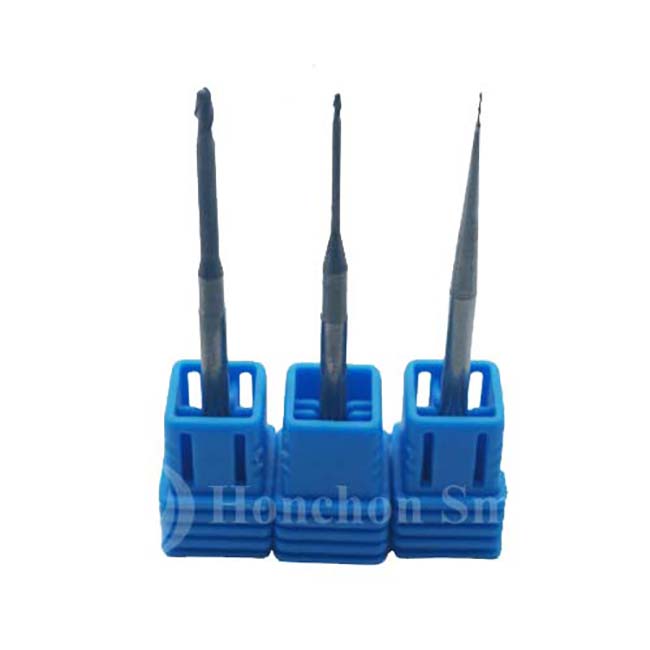

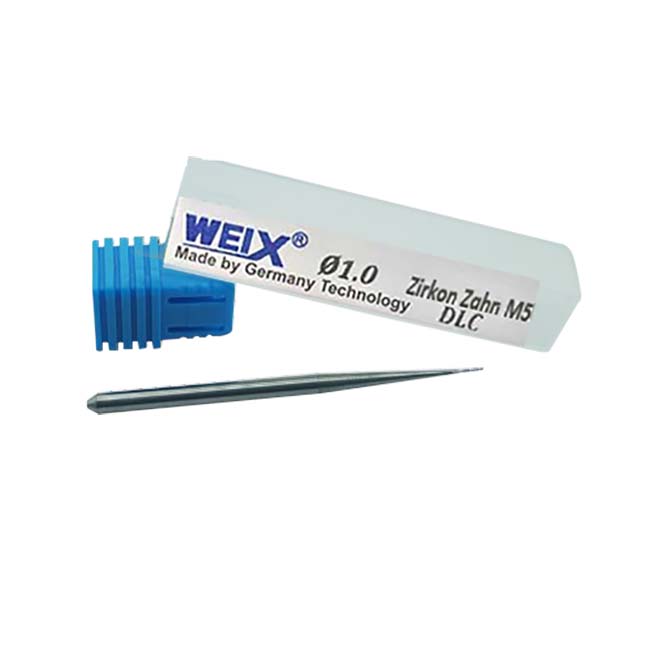

2 Flutes Zirkon Zahn M5 Dental Milling Bur

Unit Price:DC $29.9  DLC $10.9

Material: Carbide

Coating:DC/DLC/NO Coating

Cutting Dia: 0.5/1.0/2.5 mm

Shank diameter: 3 mm

Overall length:  57 mm

End type: Center cutting

Main features

*This carbide dental burs is designed for use with Zirkon Zahn M5.
*Allow to mill material 10mm-26mm in thickness, approved for milling:
zirconia, Wax and PMMA and some metal milling.
*Specially engineered for precise performance, maximun durability and longer life
* High milling capacity

Application

Suitable for Zirconia, PMMA and wax milling.

Cutting dia(mm)Cutting edge length(mm)Effective cutting length(mm)Shank dia(mm)Overall length(mm)No CoatingDLCDC
0.51.56.03.057.0WZZM.0506WZZM.0506-DLCWZZM.0506-DC
1.06.012.03.057.0WZZM1012WZZM.1012-DLCWZZM.1012-DC
2.010.018.03.057.0WZZM.2018WZZM.2018-DLCWZZM.2018-DC

WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.

Click to download our catalog

Speed And Feeds

Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.

Contact Us: [email protected]
