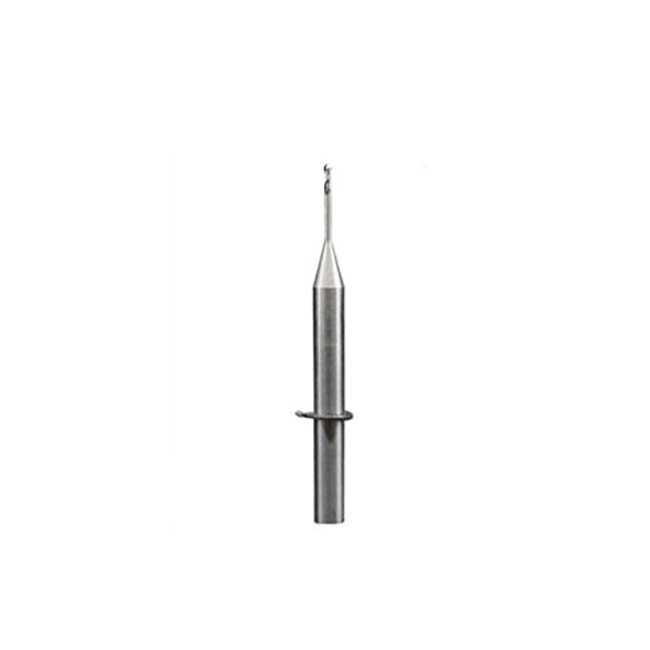

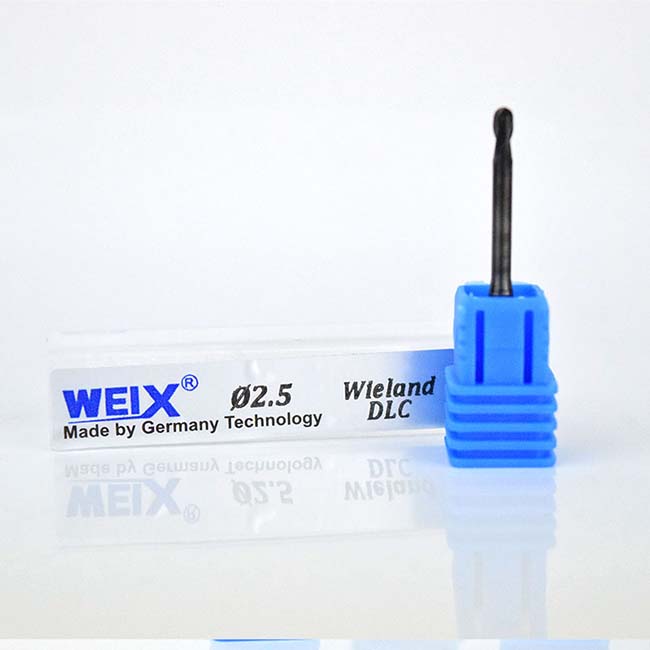

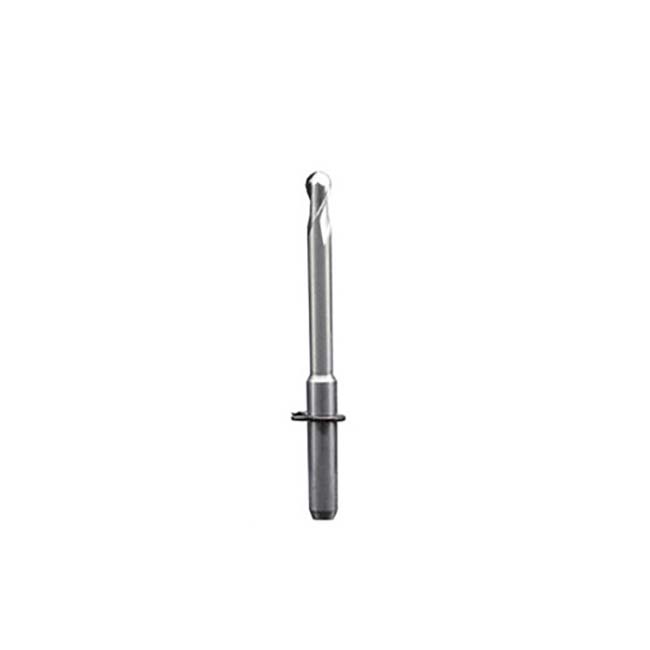

2 Flutes Wieland Mini Dental Milling Bur

Unit Price:DC $29.9  DLC $10.9

Material: Carbide

Coating:DC/DLC/NO Coating

Cutting Dia: 0.7/1.0/2.5 mm

Shank diameter: 3 mm

Overall length:  35 mm

End type: Center cutting

Main features

*This carbide dental burs is designed for use with WIELAND MINI
*Allow to mill material 10mm-26mm in thickness, approved for milling:
zirconia, Wax and PMMA and some metal milling.
*Specially engineered for precise performance, maximun durability and longer life
* High milling capacity

Application

Suitable for Zirconia, PMMA and wax milling.

Cutting dia(mm)Cutting edge length(mm)Effective cutting length(mm)Shank dia(mm)Overall length(mm)
0.71.57.03.035.0WWIM.0707WWIM.0707-DLCWWIM.0707-DC
1.03.516.03.035.0WWIM.1016WWIM.1016-DLCWWIM.1016-DC
2.53.520.03.035.0WWIM.2520WWIM.2520-DLCWWIM.2520-DC

WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.

Click to download our catalog

Speed And Feeds

Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.

Contact Us: [email protected]

Click there to download files
