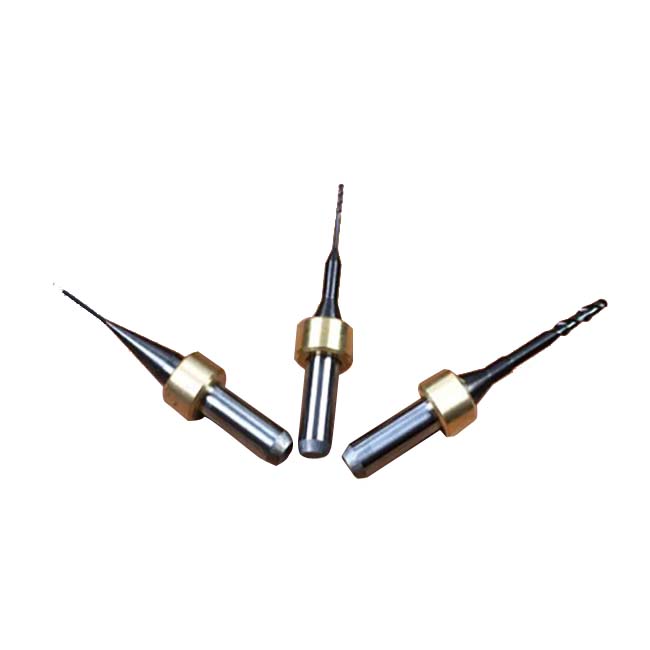

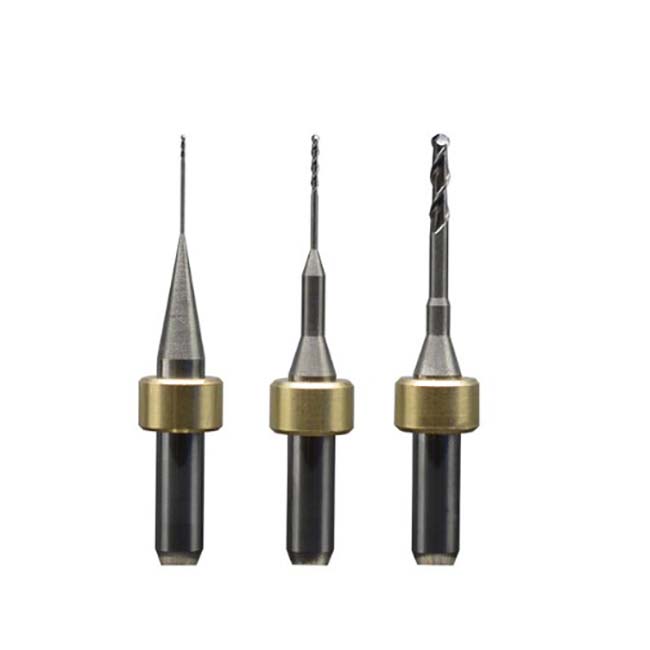

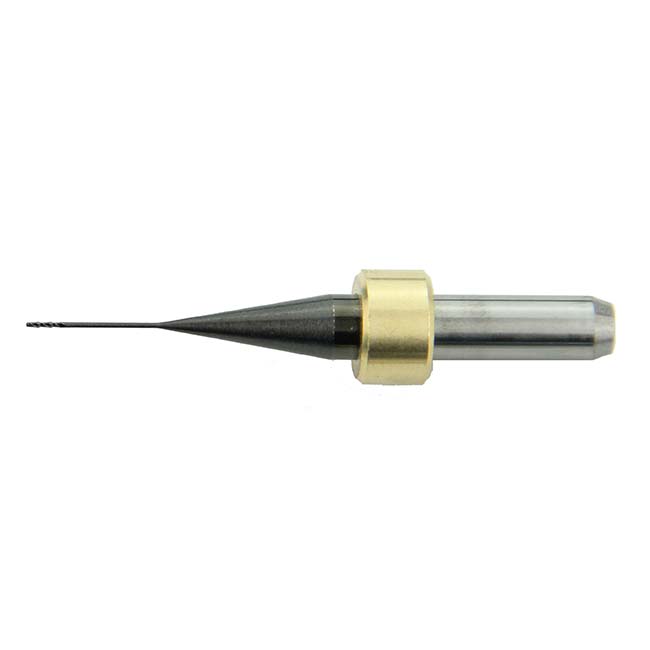

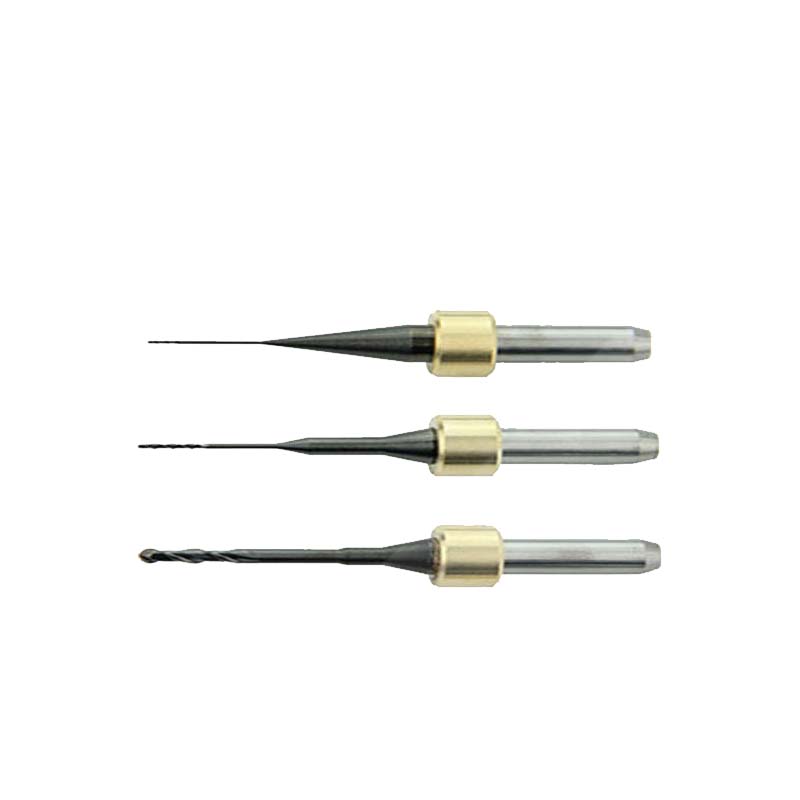

2 Flutes Imes-Icore 750 Dental Milling Bur

Unit Price:DC $29.9  DLC $10.9

Material: Carbide

Coating:DC/DLC/NO Coating

Cutting Dia: 0.6/1.0/2.5 mm

Shank diameter: 3 mm

Overall length:  53 mm

End type: Center cutting

Main features

*This carbide dental burs is designed for use with IMES-ICORE 750.
*Allow to mill material 10mm-26mm in thickness, approved for milling:
zirconia, Wax and PMMA and some metal milling.
*Specially engineered for precise performance, maximun durability and longer life
* High milling capacity

Application

Suitable for Zirconia, PMMA and wax milling.

Cutting dia(mm)Cutting edge length(mm)Effective cutting length(mm)Shank dia(mm)Overall length(mm)  Code
0.62.512.06.6 53.0WII.0612WII.0612-DLCWII.0612-DC
1.06.014.06.6 53.0WII.1014WII.1014-DLCWII.1014-DC
2.510.020.06.6 53.0WII.2520WII.2520-DLCWII.2520-DC

WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.

Click to download our catalog

Speed And Feeds

Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.

Contact Us: [email protected]

Click there to download files
