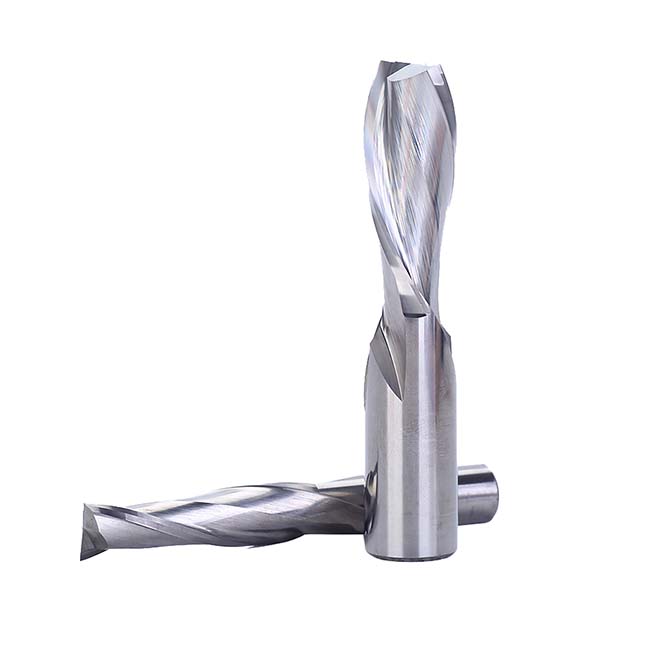

2 Flute-Spiral End Mill

Code:1011

Material: Carbide

Coating: No Coating

Shank diameter: 4-12 mm

Overall length: 38-75mm

Flutes:2

End type: Center cutting

Main features

*Designed to significantly increase performance in highly balanced machining centers capable of elevated RPM and feed rates

*H6 shank tolerance for high precision tool holders

*Excellent performance in high efficiency milling

*High accuracy, not easy to wear, good sharp.

*Large discharge chute, fast processing speed, without sticking.

Application

Suitable for MDF, Plywood, Multilayer PCB and other wood processing

Flute Dia(mm)Flute Length(mm)Shank Dia (mm)Overall length (mm)Code
3.17583.175381011001
3.175123.175381011002
3.175153.175381011003
3.175173.175381011004
3.175223.175381011005
3.175253.175451011006
3.175283.175451011007
3.175323.175501011008
3.175423.175651011009
3.175523.175751011010
143.175381011011
1.563.175381011012
1.583.175381011013
1.5123.175381011014
283.175381011015
2123.175381011016
2153.175381011017
2173.175381011018
2223.175451011019
2.583.175381011020
2.5123.175381011021
2.5153.175381011022
2.5173.175381011023
2.5223.175451011024
484451011025
4124451011026
4174451011027
4224451011028
4254451011029
4284501011030
4324551011031
4424701011032
4524801011033
5175501011034
5225501011035
5285551011036
5325551011037
6126501011038
6176501011039
6226501011040
6256501011041
6286601011042
6326601011043
6426701011044
6526801011045
66261001011046
8258601011047
8328601011048
8428751011049
8528901011050
103210751011051
104210801011052
1052101001011053
1062101101011054
